Amplifiers & Power Repeater
Due to the voltage drop of the constant voltage LED lamp itself, in the LED light control system, with the increase of transmission distance and load cascade, the LED power drive capacity is insufficient, and the luminance of the lamp tail decreases significantly, thus affecting the consistency of the output of LED lamps.
Through the use of power repeater, accept constant voltage PWM signal control, expand the output power of constant voltage controller, control more lamps, achieve synchronous control effect. PWM constant voltage controller can theoretically be connected in series or in parallel with an unlimited number of power repeaters.
SmartBrightLEDs power repeater family includes constant voltage power repeater and constant current power repeater, divided into 1/3/4/5 channel types. It is used with RF constant voltage controller, DMX constant voltage decoder, DALI PWM constant voltage dimmer, etc.
Displaying 1 to 15 (of 15 products)
This three channel RGB amplifier. Maximum 4 Amps per channel/12 Amps total. Increases the load capability and extend the signal of the universal RGB controllers. Required if exceeding the maximum load capability of any universal RGB controller. 12~24VDC operation. Warranties & Certifications TECHNICAL DETAILS Supply Voltage: DC 12~24V Max load current: 4 Amps/channel (12 Amps total) Output: 3 Channel Static power consumption: < 1 Watt Output Power: 144...

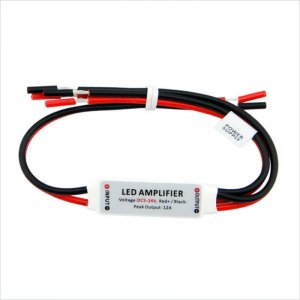

Mini amplifiers for single-channel LED strips, specifically designed to control LED products in constant voltage with common anode for voltages between 5V and 24V in direct current. They are able to synchronously repeat the signal in PWM technology. Extremely compact construction and designed for indoor use. Price for each. Warranties & Certifications TECHNICAL DETAILS Amps: 4.00 Amps Amps Per Channel: 4 Amps/CH Channels: 1 Channel Connection Type: Pigtail Standards...

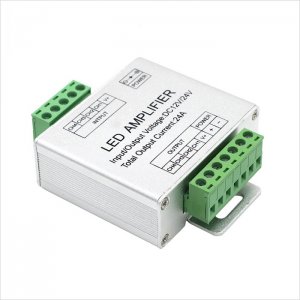

RGBW-A64C series four channel RGBW amplifier. Maximum 6 Amps per channel/24 Amps total. Increases the load capability and extends the signal of universal RGBW controllers. Required if exceeding the maximum load capability of any universal RGBW controller. 12~24VDC operation. Warranties & Certifications TECHNICAL DETAILS Amps 24 Amps Amps per Channel 6 Amps/CH Channels 4 Channels 4 Channels Connection Type Screw Terminals Max Load 24.0A Operating Temperature ...

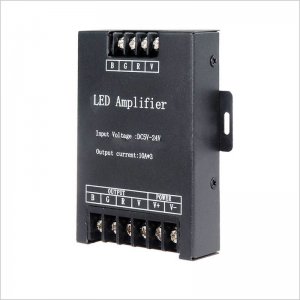

Amplify the red, green, blue three group signal of 3 channel controller, improve the system with load capacity, and has minimal delay, but can keep synchronism in cascade. The outlet should be connected correctly according to the color shown in the wiring diagram. Can't be wrong attached, in order to avoid short-circuit. Warranties & Certifications TECHNICAL DETAILS Working temperature -20-60℃ Input voltage DC12~24V Signal voltage DC 12V~24V Input signal RGB common...

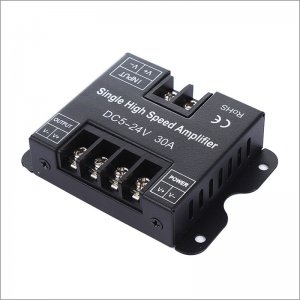

Durable construction and easy-to-use, this 1 channel signal amplifier / repeater is great for applications that require connecting LED strips end-to-end or where the load exceeds the PWM dimmer’s capacity. Once you have met the power limitations of your LED dimmer you can use this amplifier to dim an additional 30A of lights, or 150W at 5VDC / 360W at 12VDC / 720W at 24VDC. Warranties & Certifications TECHNICAL DETAILS Input Voltage: 5-24V DC Output Current: 30A max. Output Power:...
Constant Voltage Power Repeater is suitable for all of our RGB controllers to expand power output. Used to extend your run of RGB 12/24v lighting product from your controller - Up to 300W@12vDC or 600W@24vDC Supports PWM (Pulse Width Modulation) control You can stack amps (2x repeaters connected = 16A/Ch) Input Power: DC5V ~ DC24V Output Power: 120(5v) 288W (12V) 576W (24V) You can just connect the output of our RGB Controller (DMX or IR) to the input of this controller and connect...

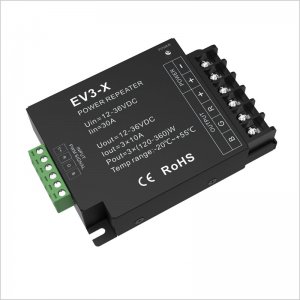

SmartBrightLEDs LED power repeaters is designed to receive PWM signal control and expand power output. By adding one more power repeater, the controller can control more L EDs, and unlimited power repeaters can be parallel connected together to expand power output unlimitedly theoretically, and achieve a synchronous control effect. 3 Channel /PWM signal input /Constant voltage output /3KV optoelectronic isolation Features 12-36V constant voltage power repeater. 3 channel, 10A per...

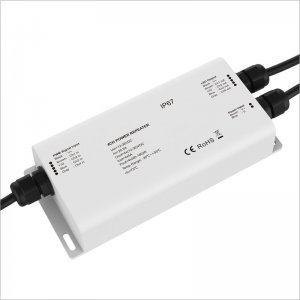

SmartBrightLEDs LED Waterproof IP67 power repeaters is designed to receive PWM signal control and expand power output. By adding one more power repeater, the controller can control more L EDs, and unlimited power repeaters can be parallel connected together to expand power output unlimitedly theoretically, and achieve a synchronous control effect. IP67 waterproof /4 Channel /PWM signal input /Constant voltage output /3KV optoelectronic isolation Features Waterproof 12-36V constant voltage...

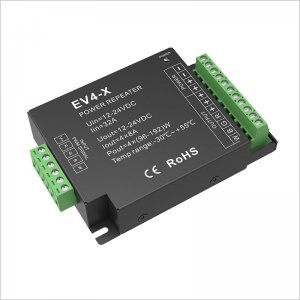

SmartBrightLEDs LED power repeaters is designed to receive PWM signal control and expand power output. By adding one more power repeater, the controller can control more L EDs, and unlimited power repeaters can be parallel connected together to expand power output unlimitedly theoretically, and achieve a synchronous control effect. 4 Channel /PWM signal input /Constant voltage output /3KV optoelectronic isolation Features 12-24V constant voltage power repeater. 4 channel, 8A per channel....

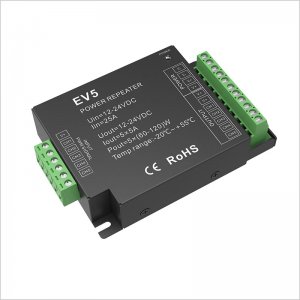

SmartBrightLEDs LED power repeaters is designed to receive PWM signal control and expand power output. By adding one more power repeater, the controller can control more L EDs, and unlimited power repeaters can be parallel connected together to expand power output unlimitedly theoretically, and achieve a synchronous control effect. 5 Channel /PWM signal input /Constant voltage output /3KV optoelectronic isolation Feature 12-24V constant voltage power repeater. 5 channel, 5A per channel. To...

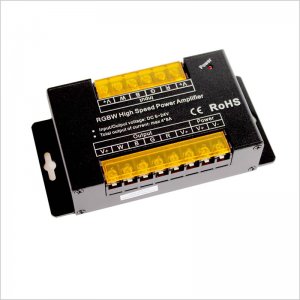

For large installations of RGBW LED strip lights where you want all of the segments of RGBW LED strip lights to change colour in unison. When there are multiple power supplies in use or when the capacity of an RGBW controller is exceeded, these RGBW signal amplifiers allow you to keep extending the signal from a single controller to all of the segments of RGBW LED strip lights. The output of the RGBW controller as well as the feed from a secondary power supply are fed into the amplifier...
This one zone power and signal amplifier is designed to expand the capabilities of your SYSPT1 host controller to power additional SYS Lighting products in a single zone up to 200w (8.5A). Simply connect a 100v-240v AC 50/60Hz mains supply to the power input connections, connect an input signal cable from the SYSPT1 Host Controller, then connect the 24v data output to your additional SYS RGB+CCT lighting products as detailed in the data sheets. The power and signal amplifier will...
This one zone Host Controller and 2.4GHz Receiver from Mi-Light can control up to 200w of Mi-Light SYS lighting products in a single zone. Simply connect to a 100v-240v AC 50/60Hz mains supply to the power input and then connect the 24v data output to your SYS RGB+CCT lighting products as detailed in the data sheets, then pair it to compatible 2.4GHz M-Light / Mi-Boxer RF handset or Wall Panel RF controllers. The controller will power up to a maximum of 200w of lighting, if...

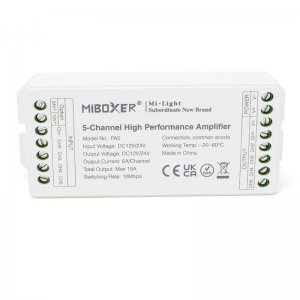

This high performance five channel data amplifier from Mi-Boxer is an ideal product for when you want to control multiple low voltage LED products together from one controller. The unit works by copying the output signal from the controller and synchronising it with the output from the data repeater. For example, when controlling colour changing products if you want to run a program such as fading through the colours, the data amplifier will keep all the connected products...

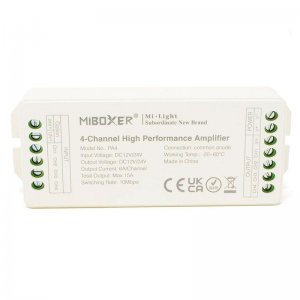

This high performance four channel data amplifier from Mi-Boxer is an ideal product for when you want to control multiple low voltage LED products together from one controller. The unit works by copying the output signal from the controller and synchronising it with the output from the data repeater. For example, when controlling colour changing products if you want to run a program such as fading through the colours, the data amplifier will keep all the connected products...
Displaying 1 to 15 (of 15 products)
|
