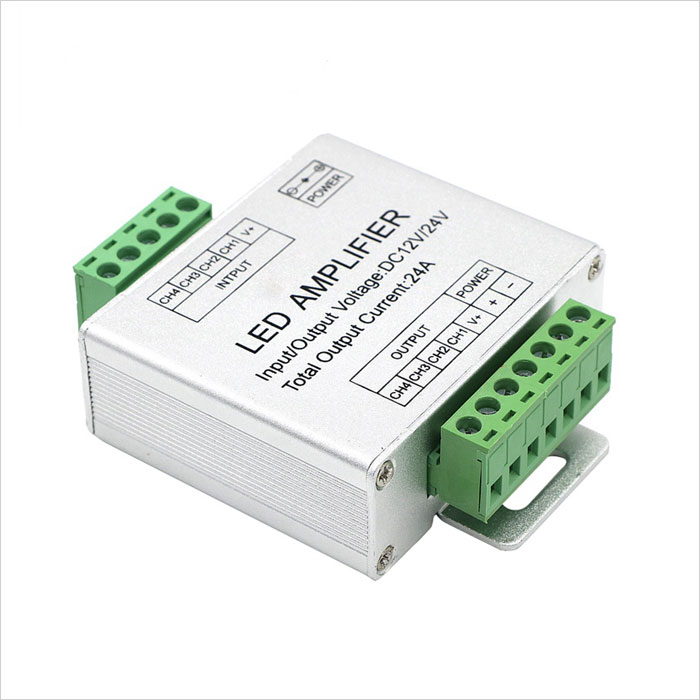

RGBW-A64C RGB LED Amplifier - DC12~24V

(6 Reviews) | Write a review

SKU: RGBW-A64C

RGBW-A64C series four channel RGBW amplifier. Maximum 6 Amps per channel/24 Amps total. Increases the load capability and extends the signal of universal RGBW controllers. Required if exceeding the maximum load capability of any universal RGBW controller. 12~24VDC operation.

Warranties & Certifications

TECHNICAL DETAILS

Amps	24 Amps
Amps per Channel	6 Amps/CH
Channels	4
Channels	4 Channels
Connection Type	Screw Terminals
Max Load	24.0A
Operating Temperature	-20~+60 °C (-4~+140 °F)
Package Weight	4oz (0.11kg)
Total Power Consumption	0.12 Watts
Volts	12~24 VDC
Wattage	288 Watts
Standards And Certifications	RoHS Compliant
Package Dimensions	5" (13cm) x 2.5" (6cm) x 2.5" (6cm)

**All specifications are subject to change without notice.
