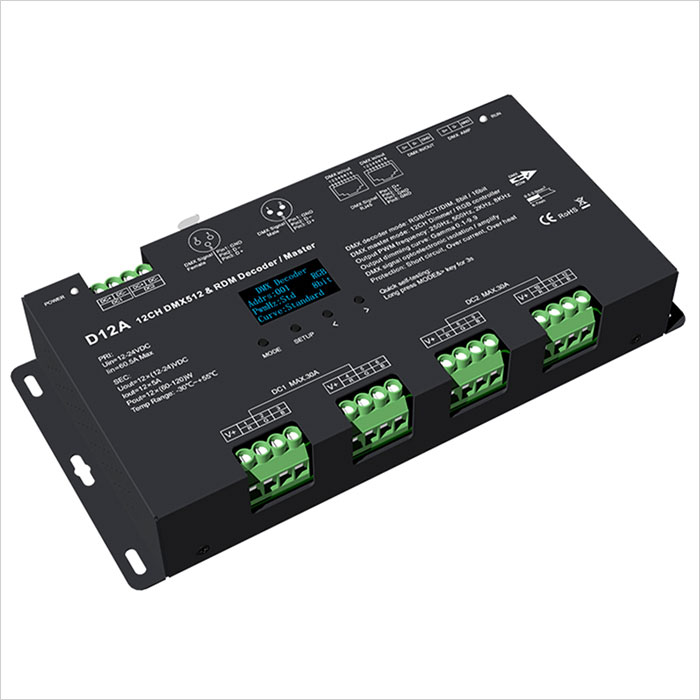

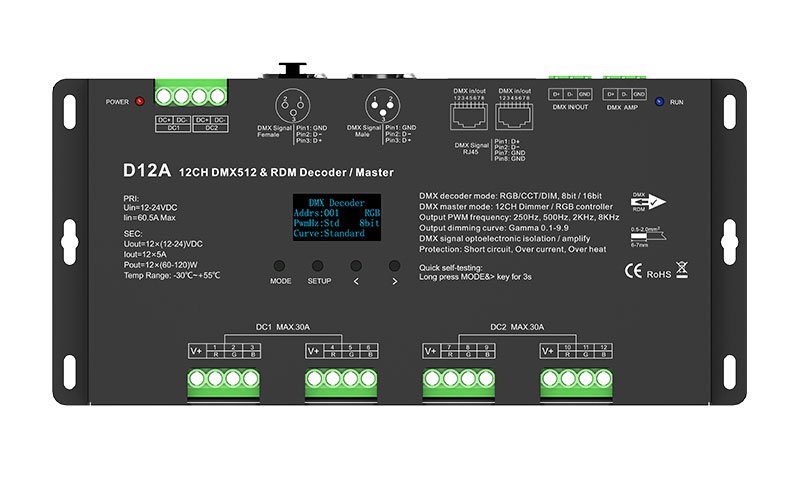

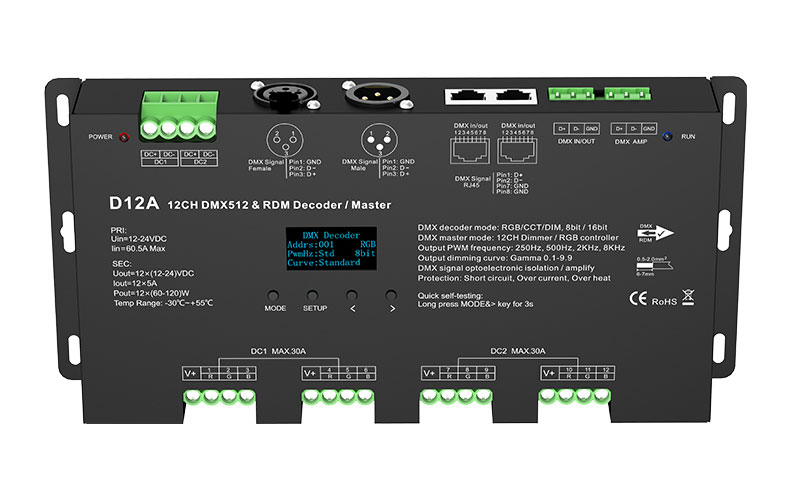

DS series 12 Channel DMX512 and RDM Decoder converts DMX and RDM signals to PWM for single color, CCT and/or RGB LED lighting products. It features both DMX decoder and master functions that are easy to switch between. RDM bi-direction communication enables the DMX console to detect and display decoder information and set DMX addresses. With a total of 12 channels, it allows a max of 5A and 120W per channel for controlling larger projects.

Selectable 16bit (65536 levels) or 8bit (256 levels) grey levels customize the smoothness of color fades. Choose between 4 PWM frequencies, with a maximum of 8000Hz to reduce flicker and enhance quality for audiovisual applications. Settings and features are easily accessible with OLED display menus and operated with 4 control buttons. 3-pin XLR, RJ45 and green terminal DMX interface with photoelectric isolation and signal amplifier function improves signal transmission efficiency and anti-interference. Common anode screw-down terminals for connection to LED light strips or fixtures. Stand alone function allows for easy testing, as well as control of RGB LEDs when no DMX signal is present. This feature includes 10 built-in RGB programs with adjustable speed and brightness levels.

Product Details:
Easy operation with OLED display and 4 buttons
PWM frequency 250/500/2000/8000Hz selectable
16bit (65536 levels) /8bit (256 levels) grey level selectable
Output dimming curve gamma value 0.1-9.9 selectable
Protects against: over-heat, over-load, short circuit
1-12 channel configuration
Max load current: 60.5A
3-pin XLR, RJ45 and green terminal DMX interface with photoelectric isolation and signal amplifier
DMX address selection OLED display
60W at 12V or 120W at 24V
Rated IP20 for dry locations
RoHs, CE certificate, FCC
5 year warranty

Warranties & Certifications

TECHNICAL DETAILS
Amps per Channel:  5 Amps/CH
Channels:  12 Channels
Control Mode:  RGB, CCT, DIM
Remote:  DMX
Dimensions:  9.7" x 4.57" x 1.55"
Dimming Curve:  gamma 0.1-9.9, linear, log
DMX In/Out:  3 pin XLR, RJ45, Wire terminals
Input Signal:  DMX512/RDM
Input Voltage Range:  12-24 VDC
IP Rating:  Non-Waterproof IP20
Max Input Current:  60.5 A
Max Output Wattage:  60–120 W / channel (depending on voltage)
Operating Temperature:  -30~+55 °C (-22~+131 °F)
Output Current:  5 A x 12 CH, max 60 A
Product Weight:  1lb 15oz (0.88kg)
PWM Adjustment:  250Hz, 500Hz, 2KHz, 8KHz
Resolution:  8 bit, 16 bit
Standards And Certifications:  CE, FCC, RoHS Compliant
Volts:    12~24 VDC
Package Weight:  2lb 1.5oz (0.95kg)
Package Dimensions:  10" (25cm) x 4.75" (12cm) x 1.75" (4cm)
All specifications are subject to change without notice.
