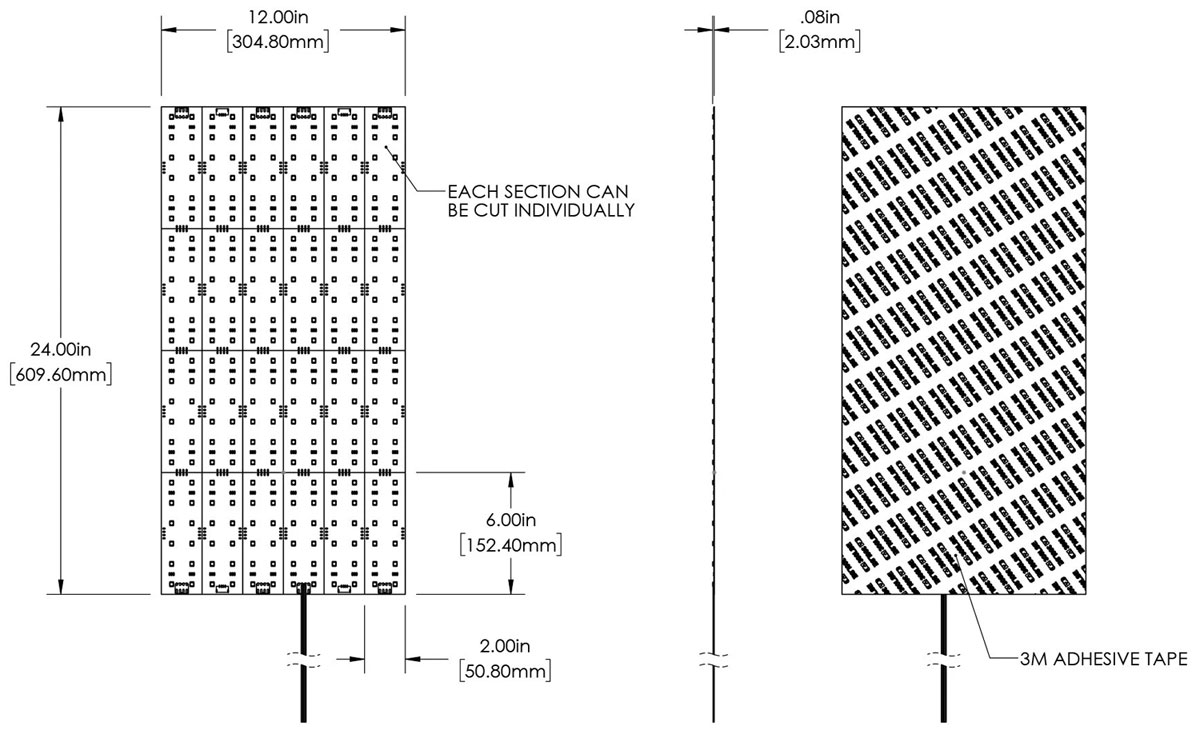

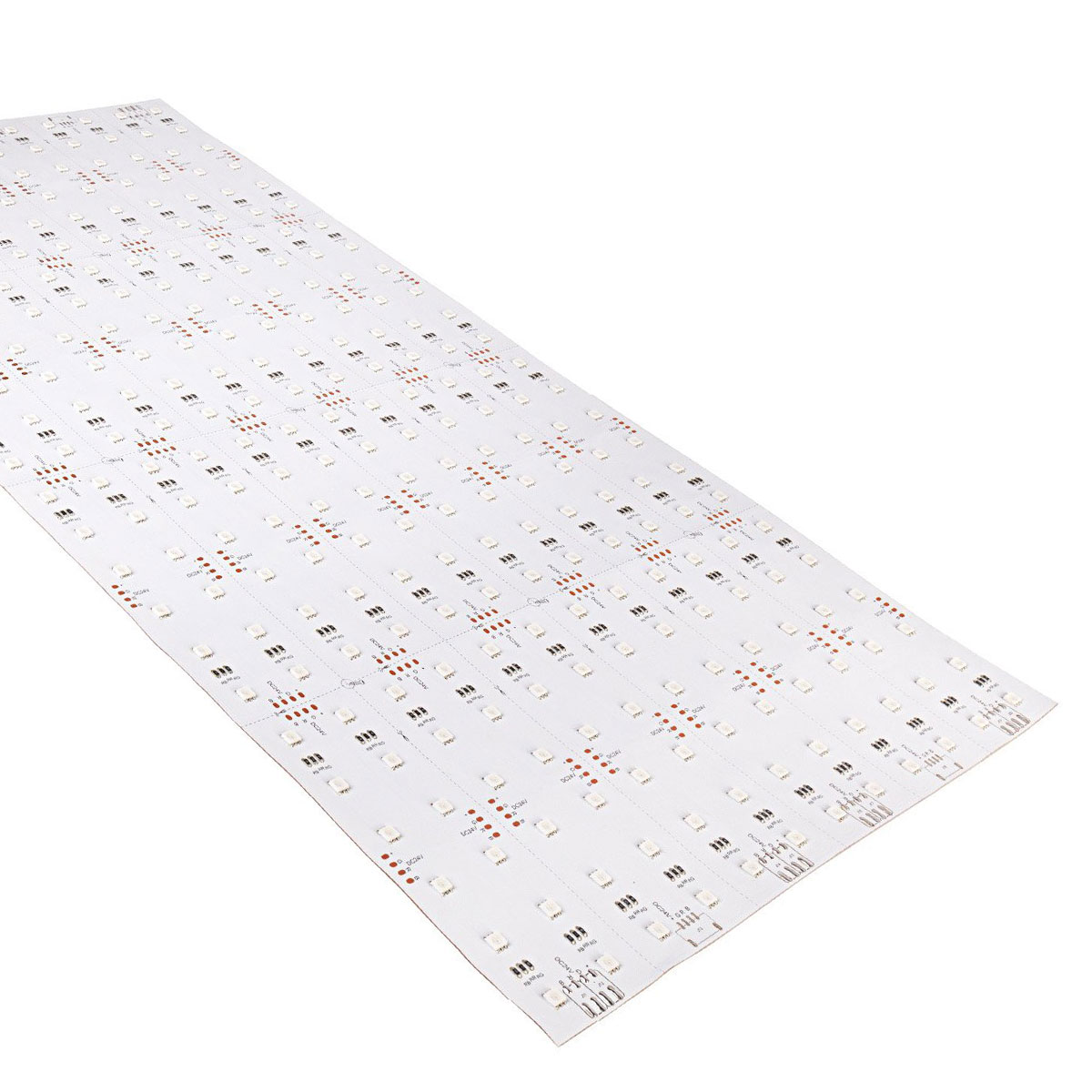

The LLS Series Flexible RGB LED Light Sheet is a versatile solution for creating unique lighting displays in channel letters, displays, and sign lighting. Featuring 288 high-density LEDs per sheet, it delivers smooth, vibrant illumination. Each 24” x 12” flexible sheet is divided into 24 segments, each measuring 6” x 2” and containing 12 LEDs, offering RGB color-changing and dimming capabilities. The light sheet can be tailored to fit irregular shapes and wrap around corners for seamless integration. Installation is made easy with a 3M™ adhesive backing or screw mounting at designated points for secure placement.

Please refer to the specification sheet for cutting recommendations. Using only the pre-marked lines when cutting the sheet is essential to maintaining electrical contact.

Product Details:
PWM Dimmable
120° beam angle
Max run with Class 2 wiring: 2.5 Sheets
Enclosure rated: Min. 1.18" spacing from LEDs to Diffuser
19” pigtail connection
24 VDC

Specifications
Ambient Operating Temperature:-20 to 45 °C (-4 to 113 °F)
Certifications/Compliance:UL Listed
Current Draw:1.6 A
Dimensions:24in x 12in
Dimmable:Yes
Dimmer Type:PWM
Efficacy:80 lm/W
Enclosed Fixture Rated:Yes
Environmental Rating:Non-weatherproof, Suitable for Dry Locations
Finish:White
Input Connection Type:Pigtail
IP Rating:IP20
LED Beam Angle:120°
LED Color:RGB
LED Chip Type:5050 SMD
LEDs per Segment:12
LED Lifetime:50000 Hours
Max Run (Class 2):2.5 Sheets
Operating Voltage:24 VDC
Segment Size:6 in. x 2 in. (152.4 mm x 50.8 mm)
Wattage:40 Watts
