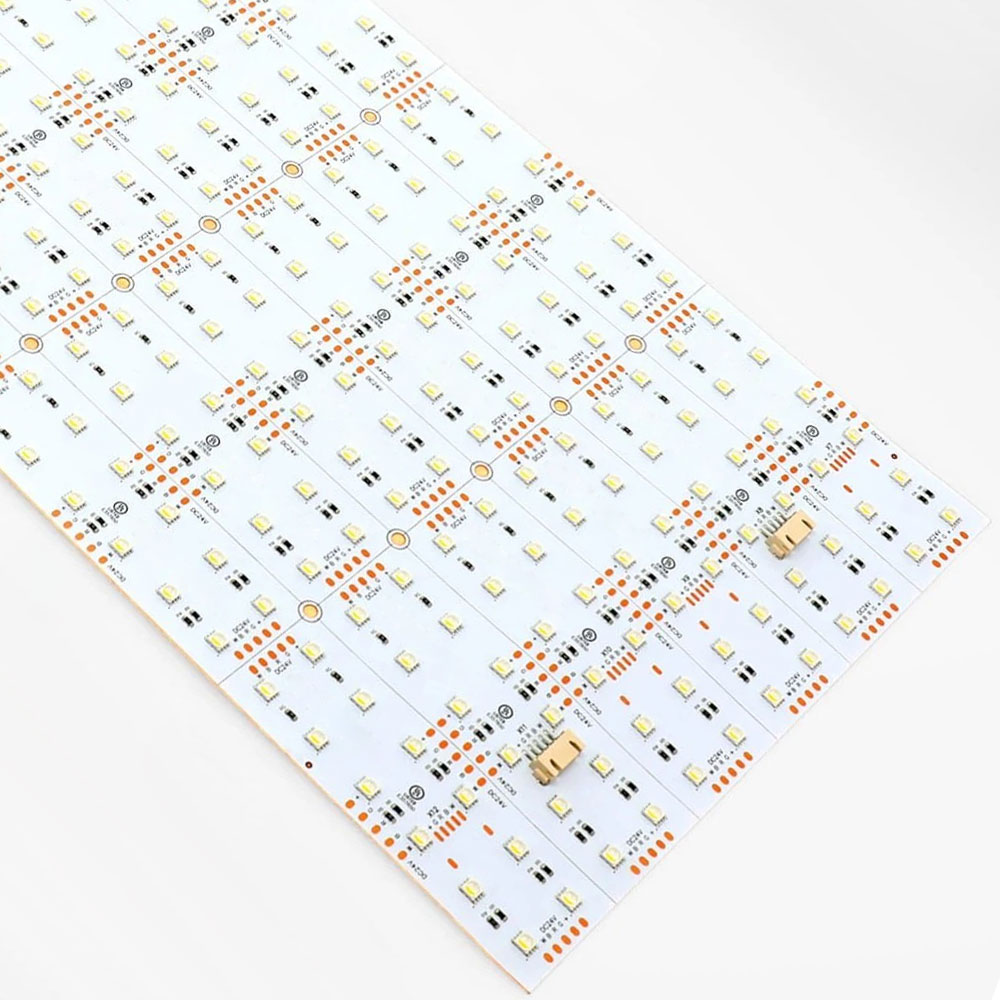

The RGB+W LED Light Sheet is thin and flexible making it easily customizable and adaptable for backlighting, light boxes, logos, and more. A compatible controller can be used to select from a range of RGB colors or a single white CCT (as ordered 3000K, 4000K, or 5000K). Ideal for signs and backlighting, the segments have marked cut lines making it easy to shape the light sheet as needed. Four on-board XH connectors simplify installation and allows for connecting segments together by using the included interconnect cable. For quick installation, use the 3M™ adhesive backing, or fasten it with screws at the indicated spots.

Product Details:
Segment size: 4.72" x 1.57"- 24 segments per sheet
Max Run with Class 2 wiring: 1 sheet
PWM dimmable
24 VDC
UL Listed
5-year warranty

Specifications
Ambient Operating Temperature:-20 to 60 °C (-4 to 140 °F)
Certifications/Compliance:UL Listed
CRI:80+
Current Draw:3.3 A
Dimensions:18.9in x 9.5in
Dimmable:Yes
Dimmer Type:PWM
Enclosed Fixture Rated:Yes
Environmental Rating:Non-weatherproof, Suitable for Dry Locations
Finish:White
Input Connection Type:Pigtail, XH 5-Pin Connector
IP Rating:IP20
LED Beam Angle:120°
LED Chip Type:5050 SMD
LEDs per Segment:12
LED Lifetime:50000 Hours
Max Run (Class 2):1 Sheet
Operating Voltage:24 VDC
Output Connection Type:XH 5-Pin Connector
Product Dimensions:18.94″ x 9.50″ x 0.26″
Segment Size:4.72 in. x 1.58 in. (120 mm x 40 mm)
Wattage:80 Watts
