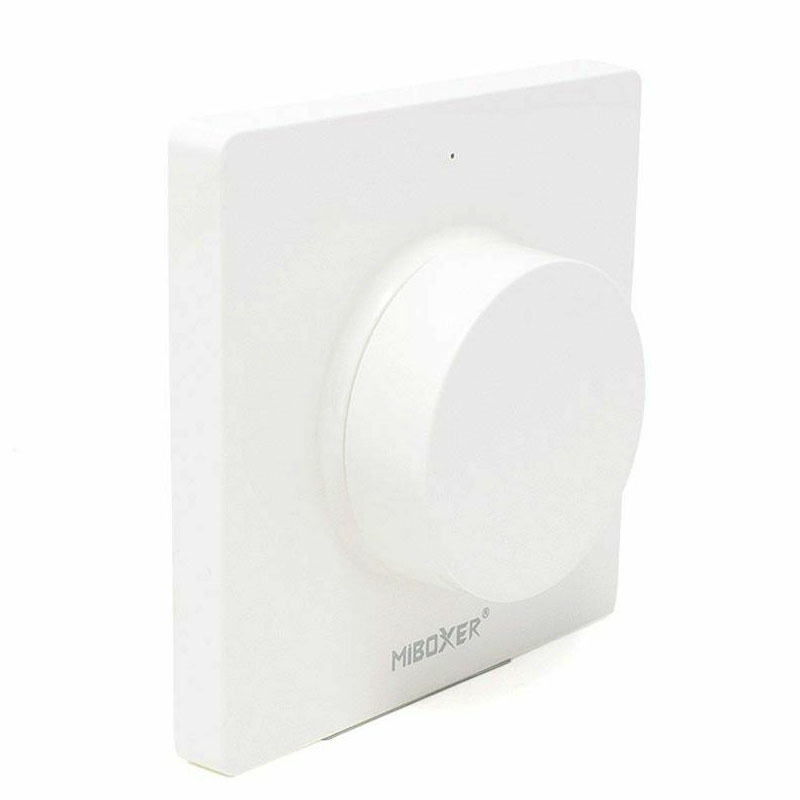

Powered by a 3v (CR2032) button battery this single colour or dual white (CCT) RF wall panel can control your single colour or colour temperature adjustable LED lighting wirelessly.  Working on the 2.4GHz frequency, the wall panel pairs easily with a compatible Mi-Boxer receiver or single colour / dual colour light from up to 30m away.

Note: Although you don't need line of sight between the wall panel and the receiver, obstructions such as walls and other obstructions can reduce this distance.
Pressing the button on the panel will turn the lighting on or off, rotating the control knob will dim or brighten the lights and if you press and hold the control knob until the indicator light flashes you will then be able to adjust the colour temperature of your dual colour lighting from Warm White (2700K) to Cool White (6500K).  If no operation is detected within 2 seconds after the colour temperature is adjusted the wall panel will switch back to dimming mode and when the light is turned off if you press and hold the control knob the wall panel will switch your lighting into night light mode.

Feature

1. Dimming Rotating Switch
2. 30m Control Range
3. Magnetic holder installation
4. Quick and easy to pair with receivers
5. 5 Year Guarantee

Technical Specification

Manufacturer:    Mi-Light / MiBoxer
Product Type:    Controller / Receiver
IP Rating:    IP20 Non-Waterproof
Guarantee Period:    5 Years
Connectivity:    RF
Size:    L86 x W27 x H86mm
Dimmable:    No
Wireless Range:    Up to 30 metres
Modulation Method:    GFSK
Transmitting Power:    6dBm
Standby Power Consumption:    <6uA
Operation Frequency:    2.4GHz
Battery Type:    3V (CR2032 Battery)
Operating Temp:    -10 to 40ºC
