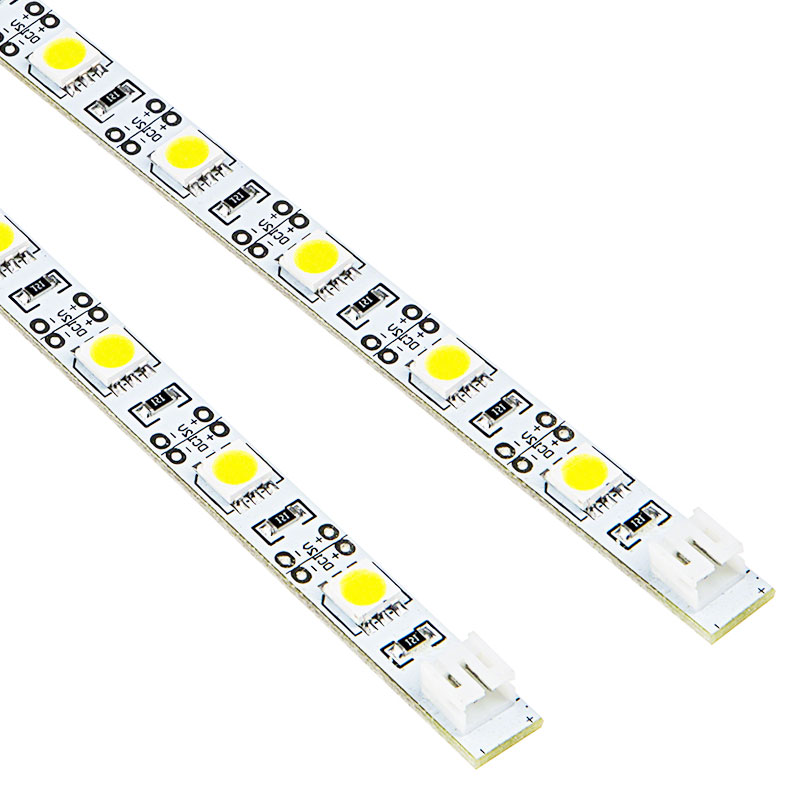

Narrow Rigid LED Light Bar w/ High Power 3-Chip SMD LEDs - 690 Lumens

(10 Reviews) | Write a review

SKU: RLBS-3xSMD

Rigid linear LED light bars are an extremely versatile solution for a variety of lighting needs, such as cabinet lighting, under-cabinet lighting, cove lighting, task lighting, bookshelf lighting, showcase lighting, cupboard lighting, or for other indoor applications where space is limited. These 1-7/8' light bars use 5050 SMD LEDs to emit up to 690 lumens of cool white, natural white, warm white, blue, or red illumination. The non-weatherproof light fixtures have 12 VDC operation and can be cut into 1-LED segments. Easily join up to 10 fixtures together with compatible interconnect cables (sold separately).

Warranties & Certifications

Application & Use
LED Backlights, Accent Lighting, Off Grid Lighting, Coves, Under-Cabinets, Display Case, Trade Shows

TECHNICAL DETAILS

Voltage	12V DC
LED Color	Cool White, Warm White, Natural White, RED, BLUE, GREEN
Input Connection Type	RLBN Female
Dimmable	Yes
Type	Rigid Light Bars
Strip Width	8.05mm (0.32in)
IP Rating	Non-Weatherproof
Lumen	690 Lumen
Max Run	10
Number of LEDs in Unit	30 LEDs
Rated Lifespan	50,000 hours
Power Consumption	7 Watts
Beam Angle	120 degree
LEDs per Segment	1
LED Type	5050 SMD
Suitable for Vehicles	Yes
Package Dimensions	22.5" (57cm) x 0.22" (1cm) x 0.22" (1cm)
CRI (Ra>)	80
Total Length	23in (1.88ft)
Standards And Certifications	CE/FCC/ISA Approved/ROHS Compliant

**All specifications are subject to change without notice.
