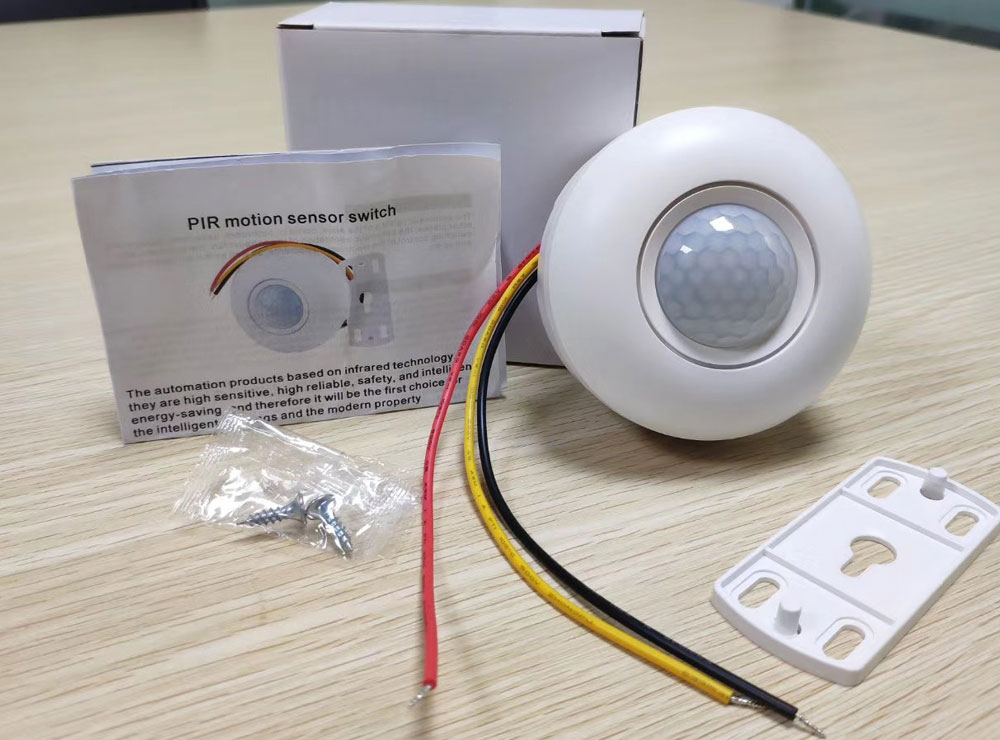

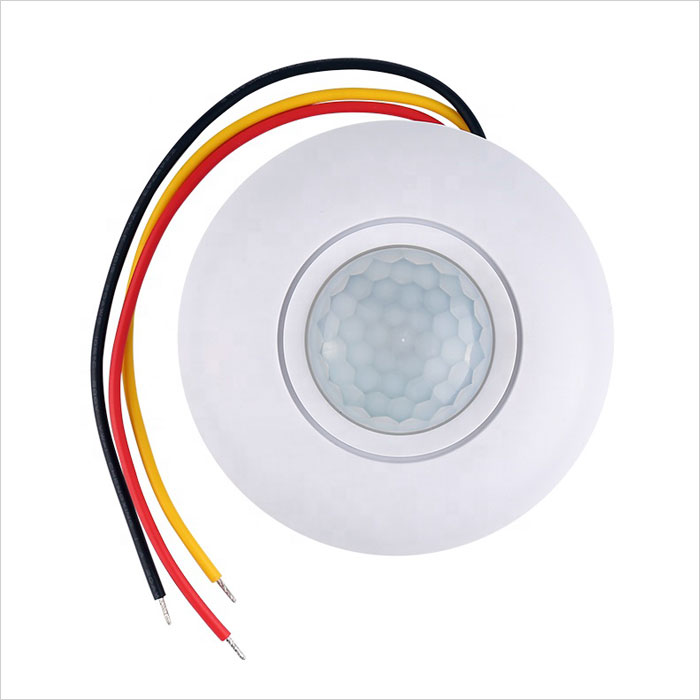

Adjustable PIR switch automatically activates connected 12VDC LED lights when human motion is detected. Adjustable sensitivity and light-on time. Can be set to remain on for any period of time between 30 seconds and 9 minutes. Motion detection range is within 8 meters and 160 degrees from center of PIR sensor. Single channel - 3 Amp maximum load. 12VDC operation.

Specifications
Rated voltage:  DC12V /DC24V /AC110-220V (50/60Hz) /AC185-240V(50/60Hz)
Operating Temperature:  -20 °C ~ +50 °C
IP Rating:    Non-Waterproof
Channels:    1 Channel
Operating power :  800W
Installation Method:  Ceiling mounted
Detecting angle:  360 degree
Lux range:  5 Lux ~ 500Lux ± 20% ajustable
Delay range:  16~1000 Secs ± 30%

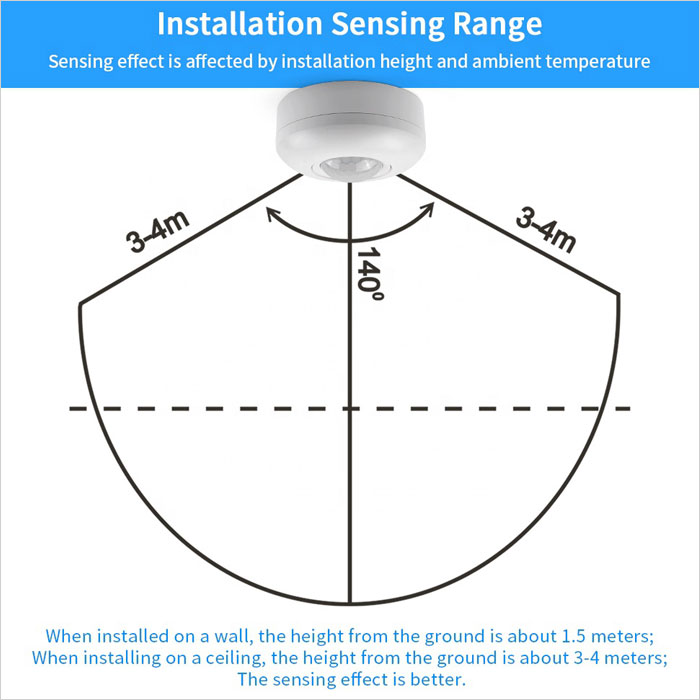

Detector destance:  8 M

Application:
corridor, storage, toilet, balcony, garage, lamp automatic turn off places.
Energy conservation, long life, security.
In low light places, and anybody move, swith turn on and automatic turn off, ajustable Lux, and delay time.

Installation
