    NeoPixel Ring 40 LEDs - Smart 5050 RGB LED with Integrated Drivers

      (1 Reviews) | Write a review
    SKU: NEO-RGBx40-5V

    Please Choose:





    Discontinued
    Starting at: $29.95
    • 30 Days Return
    • 5 Years Warranty
    Add to Wishlist
    Deliver between Sun,May,19 and Sat,May,25. order with 2days,9hrs and 31 min.

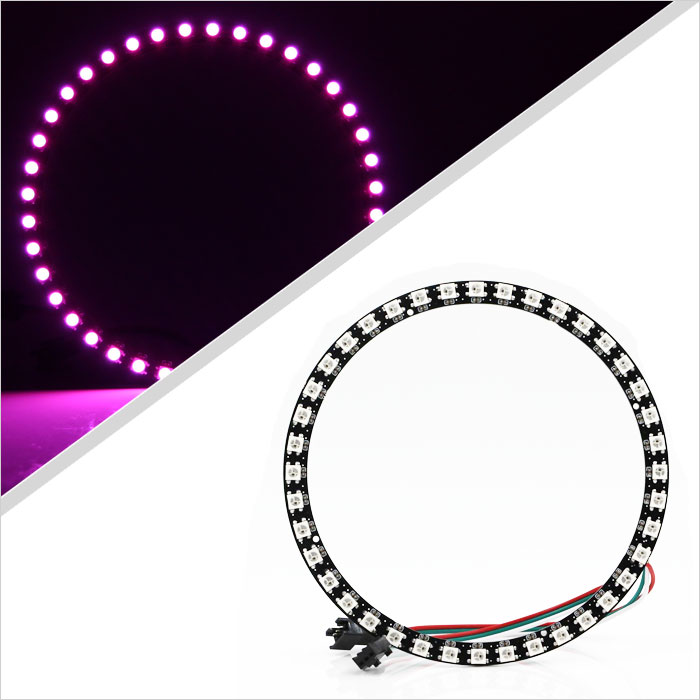

    40 ultra bright smart LED NeoPixels are arranged in a circle with 132mm (5.19") outer diameter. The rings are 'chainable' - connect the output pin of one to the input pin of another. Use only one microcontroller pin to control as many as you can chain together! Each LED is addressable as the driver chip is inside the LED. Each one has ~18mA constant current drive so the color will be very consistent even if the voltage varies, and no external choke resistors are required making the design slim. Power the whole thing with 5VDC.

    Warranties & Certifications

    TECHNICAL DETAILS
    Beam Angle:  120 degree
    Type:  NeoPixel Ring
    Operating Voltage Range:  5 VDC
    IP Rating:  Non-Weatherproof
    LED Lifetime:  30000 Hours
    LED quantity:  40 LEDs
    Ambient Temperature:  -20ºc - 60ºc
    PCB Width:  8mm (0.31in)
    Outer diameter:     132mm
    Inner diameter:  116mm
    Standards And Certifications:  CE, RoHS Compliant
    LED Type:  5050 SMD
    Thickness:  3mm
    LED Color:  RGB
    Connection Type:  Pigtail
    All specifications are subject to change without notice.
