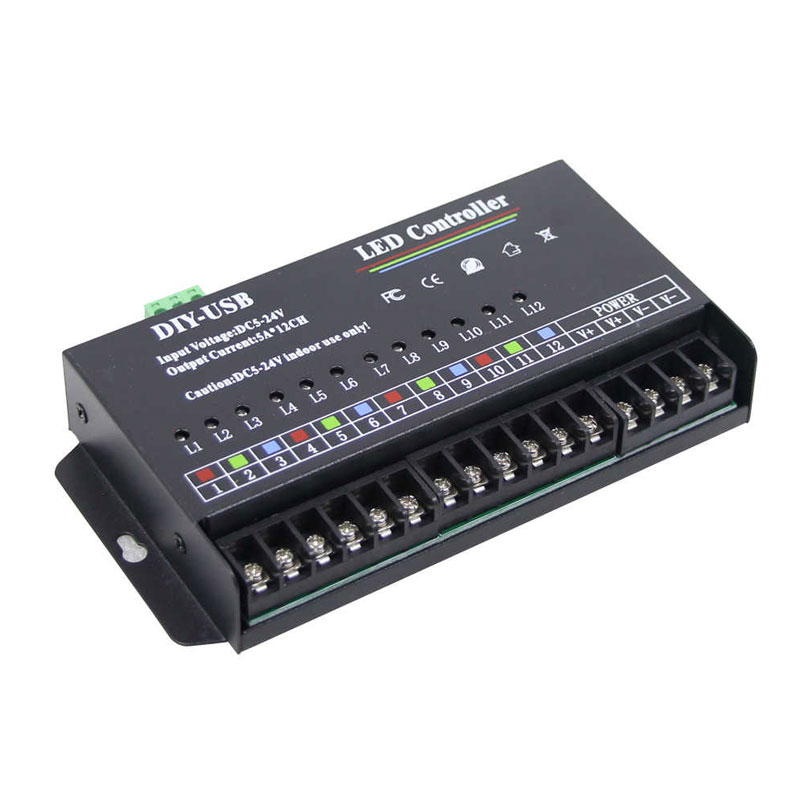

12 Channel USB-DIY RGB/RGBW LED Controller - 5 Amps/Channel

(1 Reviews) | Write a review

SKU: USB-RGBx12C-DIY

Features
1, One can control 12 roads monochromatic LED light running back and forth, colorful 4 roads running.
2, DC5-24V wide working voltage, can control the exposure lamp, module, lamp strip.
3, 12 outputs, each output current up to 5A, support monochrome exposed lamp、 module 3000PCS.
4, Multiple controller can cascade synchronization, it can control 120 roads, the effect can modify, download via USB, simple and convenient operation, strong randomness.

Technical Parameters
working temperature: -20-60 ℃
supply voltage: 5V -24V
output:12 channels
connection mode: common anode
external dimension: L166ΧW83ΧH37mm
packing size: L180 Χ W93 Χ H40 mm
net weight: 325g
static power: <5W
output current: <5A( each channel )
output power: 12V<720W,24V<1440W
