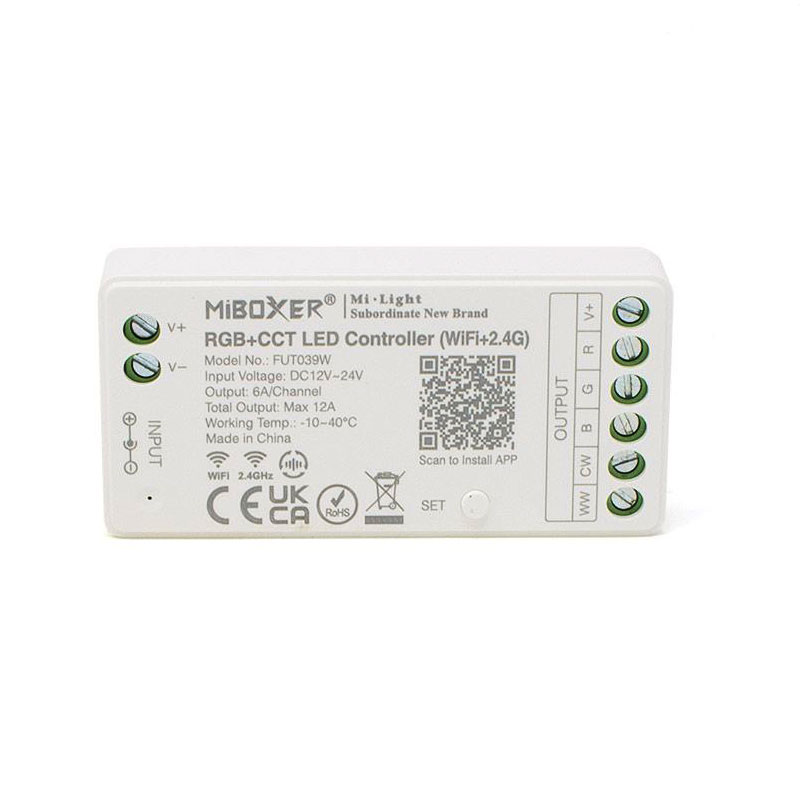

This high-quality Wireless Five-Channel Bluetooth and 2.4GHz LED Strip WiFi Controller from Mi-Light can be paired to a 2.4GHz RF Mi-Light / Mi-Boxer Handset or Wall Panel or through the smartphone app. Control your low voltage (12V or 24V) remote controlled RGB + CCT LED lighting products with ease.
This RF LED Receiver also supports third party voice control products such as smart speakers like the Amazon Echo Dot or Google Home Hub. (Additional Mi-Light WiFi hub required for these features).
The maximum load on this LED receiver is 12A (2.4A / Channel) and the PWM Frequency is adjustable from 400Hz to 6KHz. An input voltage of 12V-24V DC (Direct Current) is required.
This LED controller is great for controlling your RGB+CCT LED remote control lighting applications, these products can include:

1. LED Light Bulbs
2. LED Downlighters
3. RGB and RGBW LED Strip Lights and adjustable colour temperature / LED Tapes
4. And many more! - View our range of Mi-Light Products

Make sure your LED lighting is connected to a suitable power supply. Then simply wire your smart light into your stylish LED RF receiver and enjoy full control over your smart home LED lighting system.
Compatible Mi-Light controllers for this RGB + CCT LED strip light controller can be found on the downloadable datasheet supplied.
It is possible to control your colour changing LED Strip lights with this Mi-Light Receiver. This RGB + CCT receiver can be paired with your 12V and 24V LED Strip Lights to produce almost any colour. The controllable white LEDs will also allow you to mix in your warm white or cool white lights (Product dependant) to create stunning pastel shades to suit your mood.
Our whole range of LED Receivers include:

1. Single Colour (Single-Channel)
2. Dual White (Dual Channel)
3. RGB (Three-channel)
4. RGBW (Four-channel)
5. RGB+CCT (Five-channel)

All our 2.4GHz radio frequency receivers feature an auto transmitting & synchronising function. Multiple receivers can be paired to the same zone on the controller. Make sure they are all within 30m of each other.
Note: The auto transmitting and synchronising functions only work when connected via RF through a 2.4GHz RF handset or wall panel. This facility does not work with a Wi-Fi or Bluetooth connection.
Please refer to the datasheet supplied with this product to complete the Wi-Fi and Bluetooth set up and download the free application. There is a QR Code link on the datasheet to the application and a "How to" Video detailing the various steps.
Compatible Mi-Light LED lighting is sold separately. All Mi-Light products purchased from Smart Bright LEDs carry an exclusive five-year warranty.

For product assistance please contact us by telephone, email or via the website live chat.

Feature

1. WiFi + 2.4GHz
2. For RGB+CCT LEDs
3. Compatible with Mi-Light / MiBoxer handsets and wall panels
4. Smartphone Compatible
5. 30m signal transmiting and synchronization between receivers
6. Quick and easy to pair with handsets and wall panels

Technical Specification
Product Type:    Controller / Receiver
Colour:    RGB / CW & WW
IP Rating:    IP20 Non-Waterproof
Guarantee Period:    5 Years
Input Voltage:    12v / 24v DC
Connectivity:    RF & WiFi
Size:    L74.5mm x W36mm x H17mm
Dimmable:    No
Wireless Range:    Up to 30 metres
Operation Frequency:    RF 2.4GHz & WiFi Standard: IEEE 802.11b/g/n 2.4GHz
Operating Temp:    -10 to 40ºC
Total Output:    Max12A
Output Max:    12A/Channel
Smart Synchronisation:    Version 2.0
