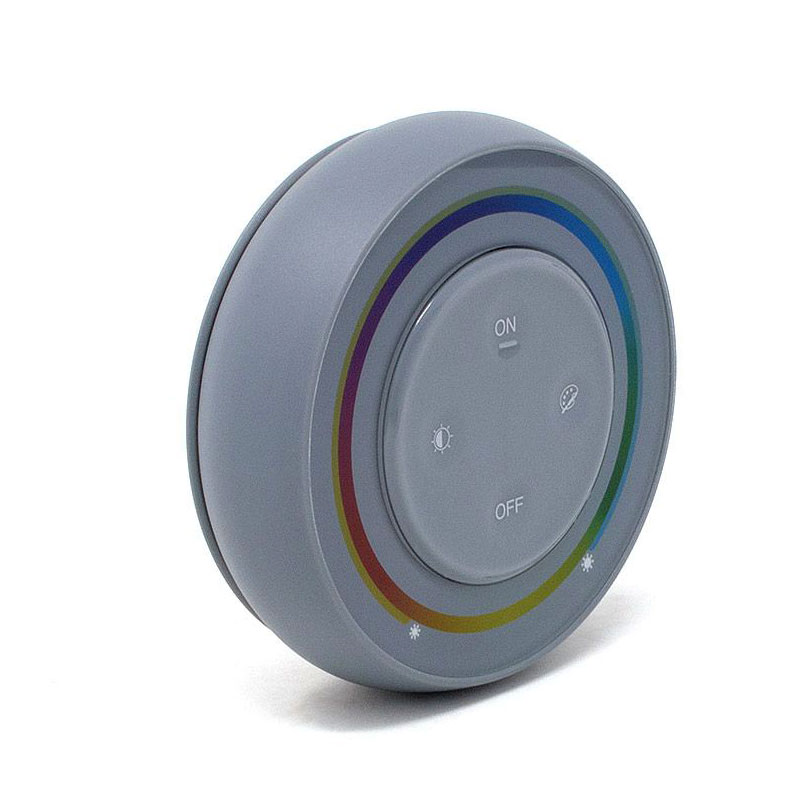

This Rainbow Wireless Five Channel Wall Panel in a sleek Gray finish enables you to switch On/Off, smoothly dim and also adjust the colour and colour temperature of your RGB+CCT LED lighting products.  The wall panel offers millions of colour combinations plus colour temperature adjustment from Warm White (2700K) to Cool White (6500K) when paired to a compatible 2.4GHz Mi-Boxer / Mi-Light Receiver or Light.  Multiple products can be paired to the wall panel and providing they are all within 30m of each other and one unit is within 30m of the wall panel, all the products in the group will synchronise together wirelessly so no need for interconnecting control cables etc.
The wall panel requires 2 x AAA batteries, we suggest using high quality, new batteries to get the best out of your product.  The On/Off, Dimming, colour changing and colour temperature controls use an IC high precision touch sensitive system for a more stable and sensitive operation.  To install the wall panel simply fit the backing plate using the fixing kit provided and attached the wall panel by twisting into place.  The wall panel can easily be removed for battery replacement or repositioning by simply twisting to release it from the backing plate.
Compatible Mi-Light LED lighting sold separately. For product assistance please contact us by telephone, email or via the on-line chat.

Feature

1. RGB+CCT Rainbow Remote
2. Dimming & Colour slider
3. Lights off timer
4. Quick and easy to pair with receivers
5. 5 Year Guarantee

Technical Specification
Manufacturer:    Mi-Light / MiBoxer
Product Type:    Controller / Receiver
Colour:    Grey
IP Rating:    IP20 Non-Waterproof
Guarantee Period:    5 Years
Input Voltage:    Battery Powered
Connectivity:    RF
Size:    ø70mm x 24mm
Dimmable:    No
Wireless Range:    Up to 30 metres
Modulation Method:    GFSK
Transmitting Power:    6dBm
Standby Power Consumption:    20uA
Operation Frequency:    2.4GHz
Battery Type:    2 x AAA Batteries
Operating Temp:    -10 to 40ºC
