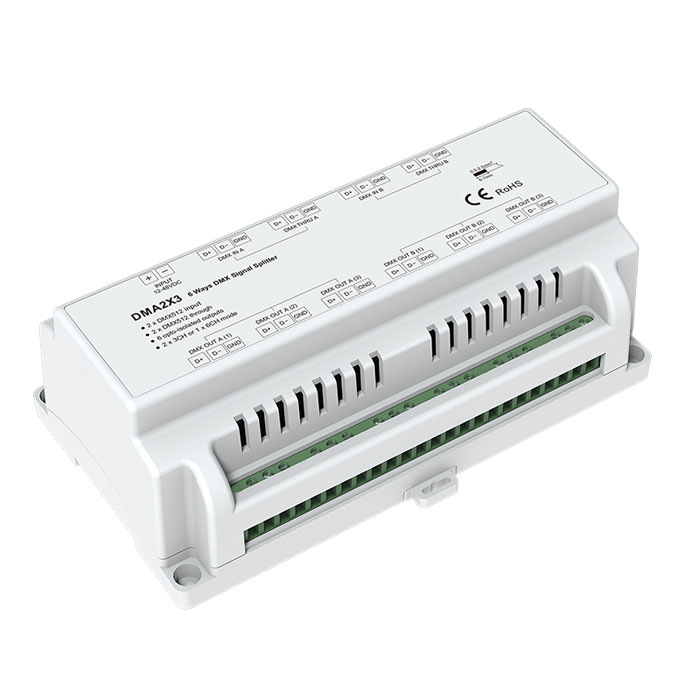

    12-48VDC 6 Ways DMX Signal Splitter DMA2X3

      (4 Reviews) | Write a review
    SKU: DMA2X3
    Discontinued
    Starting at: $89.95
    • 30 Days Return
    • 5 Years Warranty
    Add to Wishlist
    Deliver between Sun,Oct,25 and Sat,Oct,31. order with 2days,9hrs and 31 min.

    Feature
    ● Two DMX512 signal input, repeat 2 x 3 DMX512 signal output, each allowing for 32 DMX devices to be connected.
    ● Dedicated to amplify, distribute and insulate the signal that comes from the lighting system equipment when it is
     connected to the bus of DMX512(or RS-485).
    ● Photo-electricity insulation between input and output terminals, output terminals among channels.
    ● Input isolated from outputs to 500VAC, 1000VDC.
    ● Outputs are isolated from each other to 500VAC, 1000VDC.
    ● Input and outputs are ture RS-485 rated, and no microprocessors are used for maximum reliability.
    ● 9 LEDs indicate power in, DMX in and DMX output status.

    Download DMA2X3 Specification Sheet
