Features
● AC phase-cut mosfet dimmer with DMX512 function, two channel output.
● Comply with the DMX512 standard protocols.
● Digital numeric display, set DMX decode start address by bottons.
● RDM function can realize intercommunication between DMX master and decoder.For example, DMX decoder address can be set by DMX master console.
● 1/2 DMX channel output selectable.
● Reverse-phase dimming or forward-phase dimming selectable.
● Minimum brightness set from 1% to 40%.
● Stand-alone dynamic mode and 2 channel dimmer mode selectable,which be controlled by buttons with built-in programs, instead of DMX signal.
● To dim and switch single color dimmable LED lamps, traditional incandescent and halogen lights.
● Over-heat protection, recover automatically

Download SBL-S1-D Specification Sheet

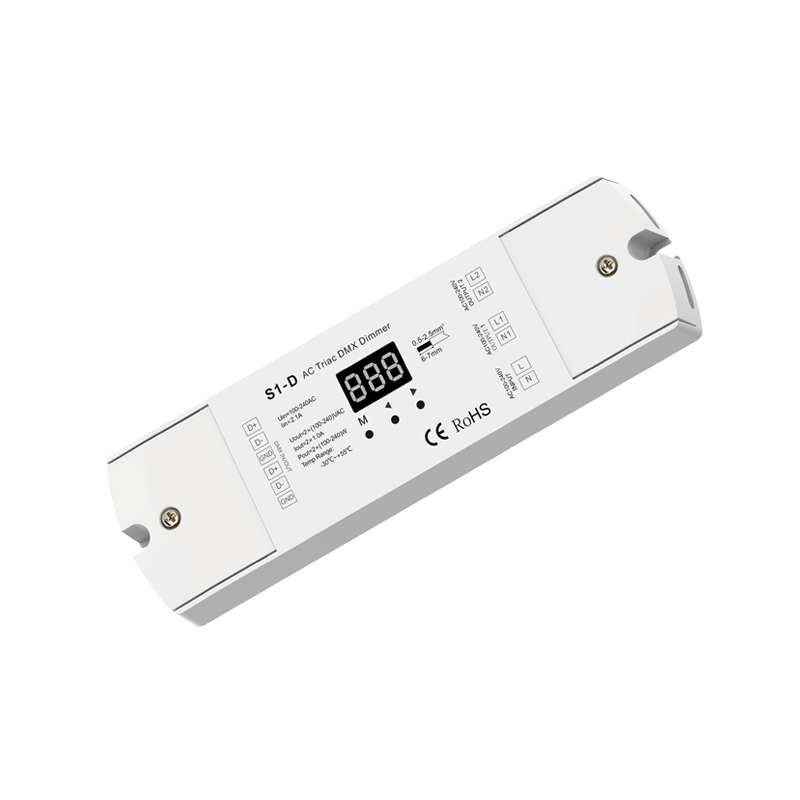

DMX Triac Dimmer
1. DMX Triac dimmer comply with the latest DMX512, DMX512(1990), DMX512-A, RDM V1.0 (E1.20 - 2006 ESTA Standard) standard protocols.
2. DMX Triac dimmer converts standard DMX512/1990 signal into 1/2 channel AC phase-cut output for control of Traic dimmable LED driver or lamps.
3. The DMX address can be set via a digital tube display key, or remotely via a DMX512/RDM console.
4. Leading edge dimming or trailing edge dimming, minimum brightness set bydigital tube display key.
5. Over-heat protection.
