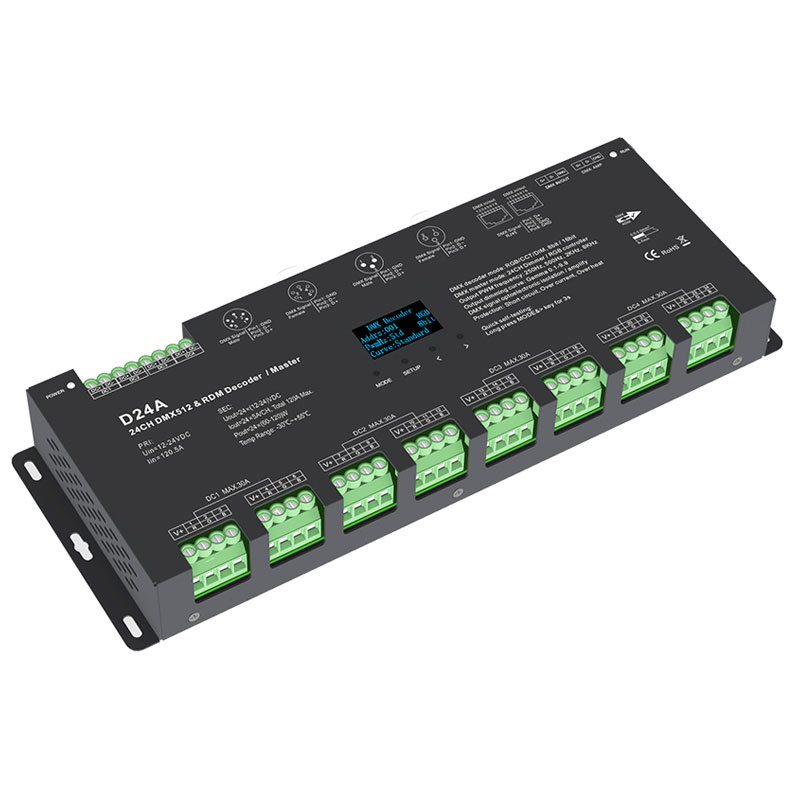

Features
● 24 channels constant voltage output, Max. 5A current per channel, up to 2880W output power.
● Master & decoder mode, RDM function.
● Easy operation with OLED display and 4 buttons.
● DIM/CCT/RGB decoding mode selectable.
● PWM frequency 250/500/2000/8000Hz selectable.
● 16bit (65536 levels) /8bit (256 levels) grey level selectable.
● Output dimming curve gamma value 0.1-9.9 selectable.
● Stand-alone RGB mode and 24 channel dimmer mode selectable, work as DMX master(8 bit) to control other decoders.
● Built-in 10 RGB programs, speed and brightness adjustable.
● Comply with the DMX512 standard protocols.
● DMX signal optoelectronic isolation / amplify.
● Over-heat / Over-load / Short circuit protection, recover automatically.
● With fast self-testing function.

Download SBL-D24A Specification Sheet

CV DMX512&RDM Decoder
1. The CV DMX512 decoder are compatible with latest DMX512, DMX512(1990), DMX512-A, RDM V1.0 (E1.20 - 2006 ESTA Standard) international standard protocols.
2. CV DMX decoders convert universal DMX512/1990 digital signal to constant voltage PWM signal to drive LED controlled by DMX512 console or our DMX master to realize 0-100% lighting adjustment.
3. The DMX address can be set via a digital tube display /OLED screen key or a 10-pin DIP switch, or remotely via a DMX512/RDM console.
4. To control single color, dual color, RGB, RGBW or RGB+CCT constant voltage LED lighting with 1/3/4/5/12/24 channels CV DMX decoder.
5. Over-heat / Over-load / Short circuit / Reverse polarity protection.
6. Work with the power repeater to expand output unlimitedly.
