Features

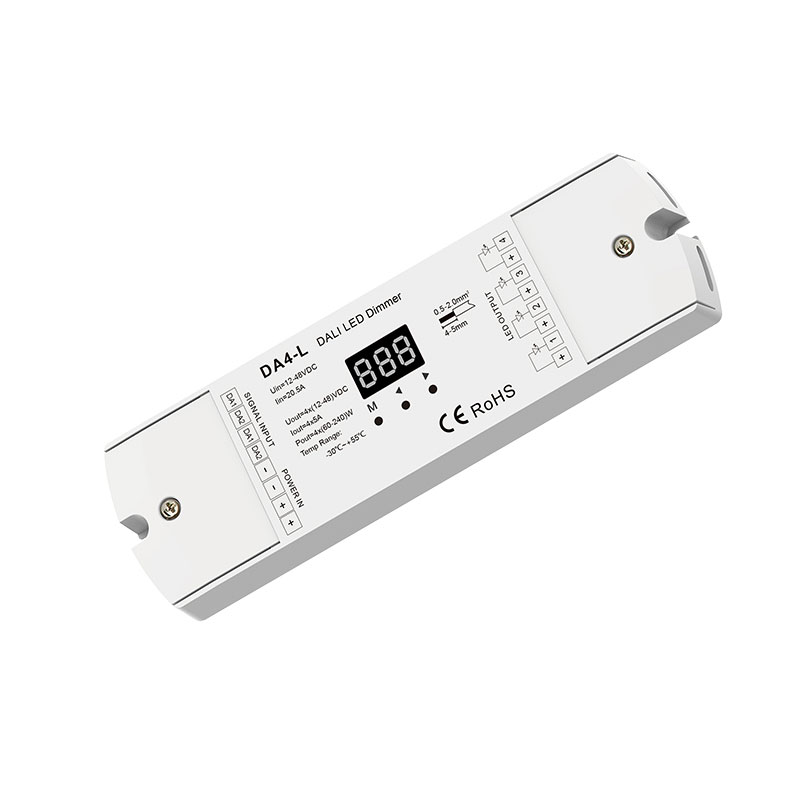

● 4 channel constant voltage DALI LED Dimmer with digital display, 5A per channel.
● 1-4 DALI address quantity is selectable, 4 channel work separately.
● In accordance with DALI standard protocol IEC 62386-102, IEC 62386-207 and in compliance with DALI products from other international incorporation.
● DALI address can be manually assigned and shown in digital display or automatically assigned by DALI master.
● PWM digital dimming, standard DALI logarithmic dimming curve.
● PWM frequency 1000/2000/4000/8000Hz selectable.
● Over-heat / Over-load / Short circuit protection, recover automatically.
● With fast self-testing function.

Download SBL-DA4-L Specification Sheet

DALI CV Dimmer
1. DC12/24V power input, 1/4 DALI address, 1/4 channels PWM constant voltage output.
2. In accordance with DALI standard protocol IEC 62386-102, IEC 62386-207 and in compliance with DALI productsfrom other international incorporation.
3. DALI address can be manually assigned and shown in digital display or automatically assigned by DALI master.
4. PWM digital dimming, standard DALI logarithmic dimming curve.
5. Over-heat / Over-load / Short circuit / Reverse polarity protection.
6. Work with power repeater to expand output unlimitedly.
