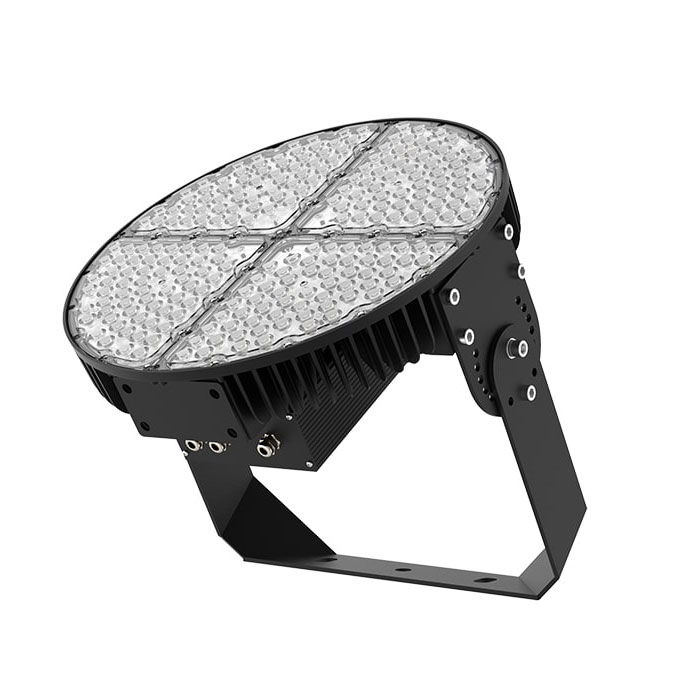

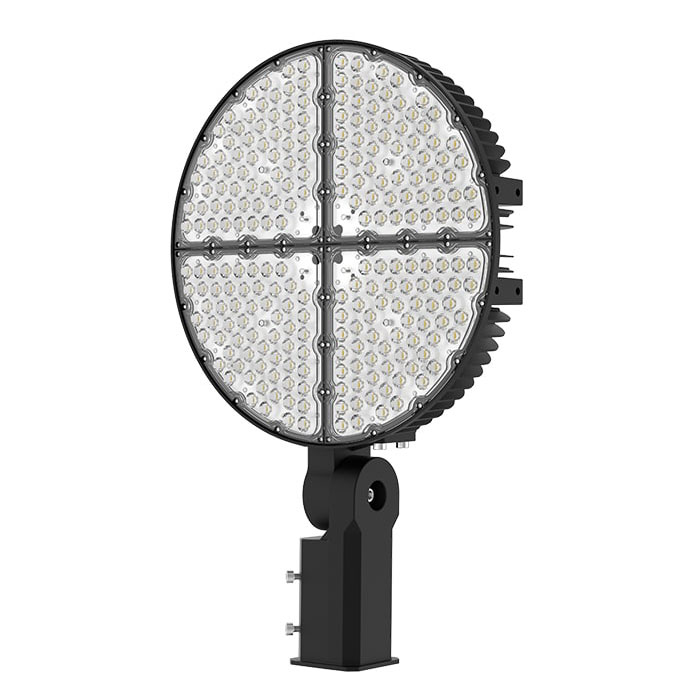

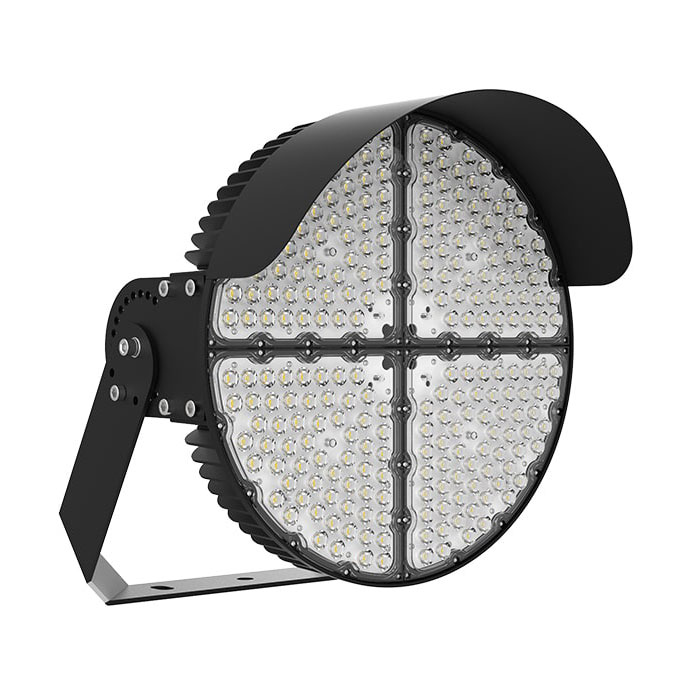

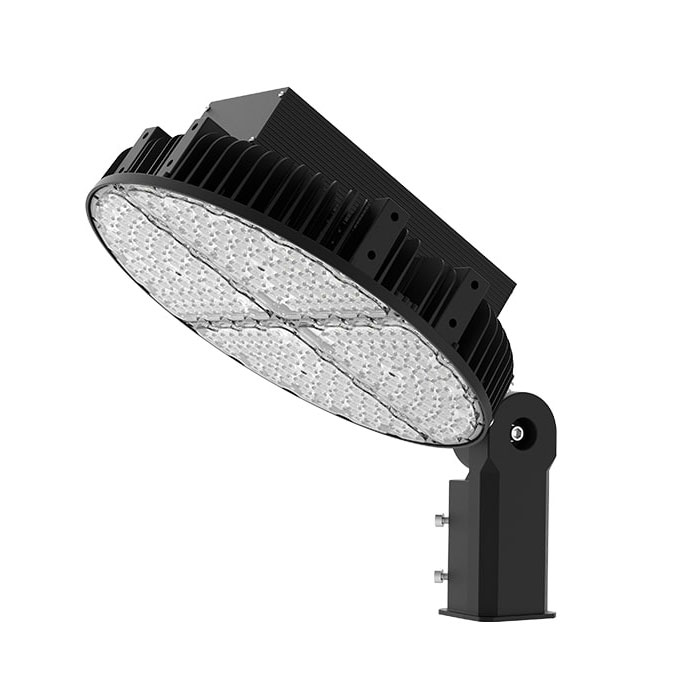

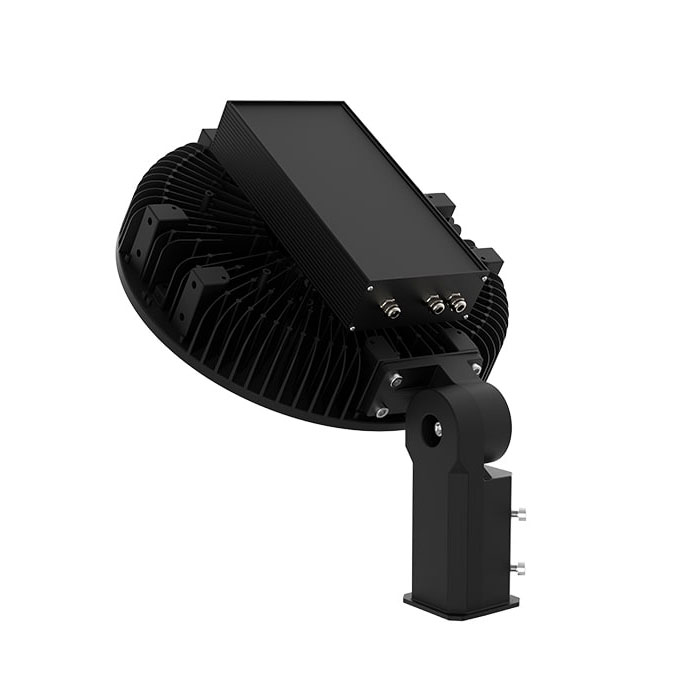

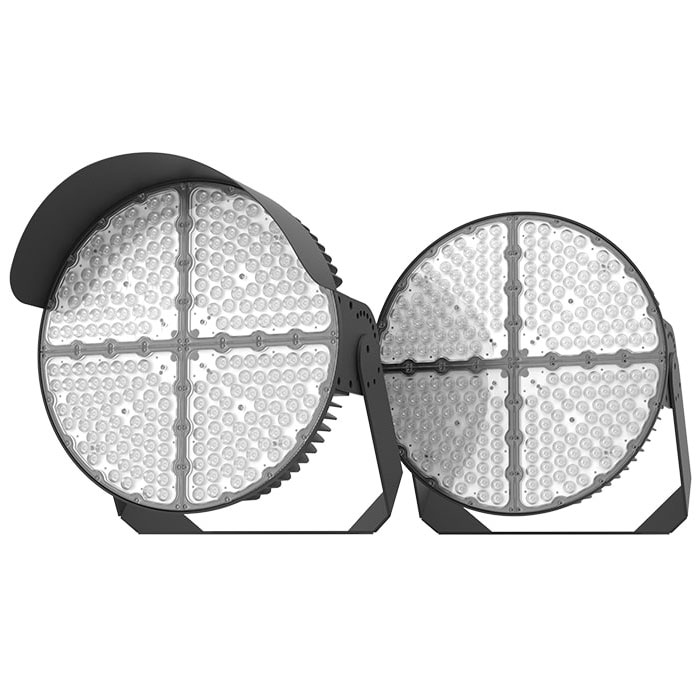

The Round Slim LED Sports Light is a lighting fixture designed for the stadium with an excellent appearance. Different beam angles can be selected according to requirements. We have 40,60 degree beam angle matching for small area lighting. For large lighting areas, we also designed a narrow angle matching of 10, 25 degrees, combined with the product's laser pointer accessories, can accurately install the lamps, and project the light at the best angle to the area that needs lighting.In addition, the anti-glare shild of the round slim series can control the excess light upward, make better use of the light in the required area, and reduce light loss and pollution. High efficiency 180LM/W can perfectly replace 1000W metal halide and high pressure sodium lamps. The service life of 50000+ hours and the opening without preheating time make customers have no subsequent troubles.

Warranties & Certifications

Specifications
Watt:    480W
Lumen:    76,800Lumen,    86,400Lumen
Efficiency:    160Lm/W±3%,    180Lm/W±3%
Driver:    Meanwell 2*ELG-240-48A
Input Volt:    100-277VAC
Chip Brand:    Lumileds 5050
CCT:    4000-6000K
Anti glared shield:    Included
Weight:    19.5Kg
Dimension:    490*330mm /  19.3"x13" in
Beam angle:    10, 25, 45, 60 degree
Certification:    TUV CE CB SAA RoHS LM79 LM80 TM21 IK10 Salt Spray test approved

View Dimensional Drawings

Photometrics
Optional Beam angle

Application
1.Baseball field 2. Soccer field 3. Hockey pitch 4. Stadium
