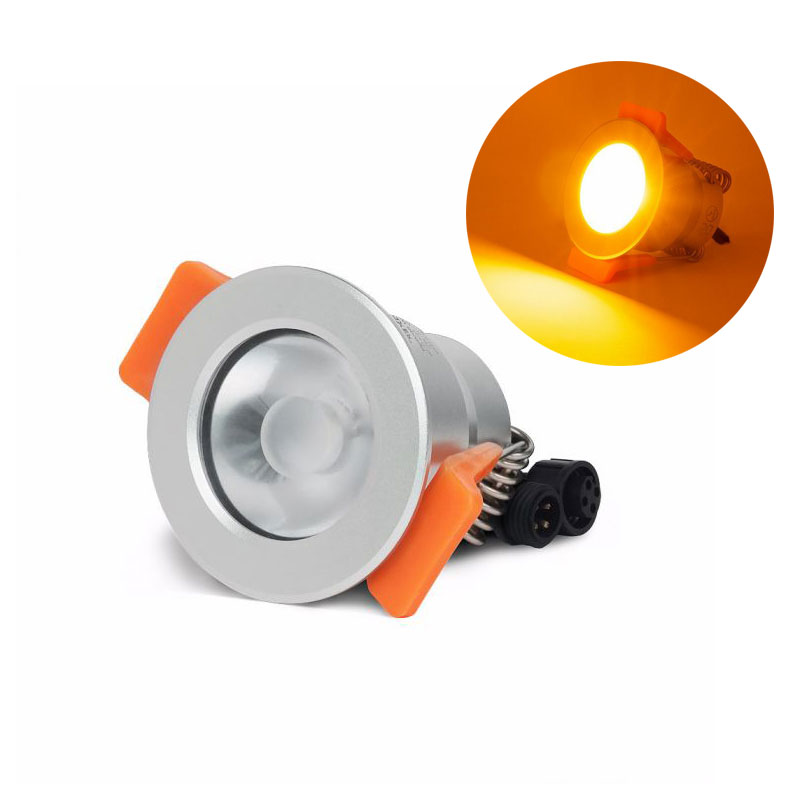

SBL-SL112 MiBoxer 3W Mini Downlighter 12V 1800-2200K
From our stylish range of 3W Mini 12V LED Downlights comes the high quality Warm White LED Downlight. This single colour temperature downlighter from Mi-Boxer is a compact and surprisingly powerful 3W LED luminaire.
With a warm and inviting colour temperature of 1800K-2000K, this mini LED Downlight is perfect for most applications.
These small LED Downlights are a great alternative for your LED light bulbs and can be used for:
- Deckings
- Kitchens
- Bathrooms
- Installations where a recessed downlight is required
The downlighter is housed in an aluminium IP66 rated case. This makes it perfect for use both indoors and outdoors in wet or damp environments. With a beam angle of 36 degrees, each unit creates a wash of vibrant colour.
Controlling your Mini LED Downlight
A wide range of single-channel wireless remote controllers are available for you to choose from. See the downloadable datasheet for compatible receivers and controllers.
Take advantage of the various programs that are built into the Mi-Light LED controller.
Handsets are battery operated making them completely safe to use.
Control your lighting solution from your phone with the free Mi-Light phone app. You can also control your LED lights with your voice using Alexa or Google Assistant.
Note: An additional hub will be needed for smartphone & voice control options.
Installation
Simply fit the downlighter into a 36mm diameter hole
Push the downlighter through the hole and clip it into place with the attached spring-loaded wings. This will hold the lights firmly in position.
Connect the mini LED downlights together as required with the attached cables
Finally, connect the lights to your control system and you are ready to go.
Note: It is important that enough ventilation is available around the light. It is not recommended to cover them with insulating materials such as loft insulation.
An input voltage of DC12V is required for this Mini LED Downlight.
This energy efficient downlight can be installed in strings up to 20 units. Easily link the lights together with the supplied “Plug & Play” link cable attached to the lights. Providing there is a void of around 40mm behind the lights, they can be installed just about anywhere.
TECHNICAL DETAILS
| Input Voltage | 12v DC |
| Color Temperature | 1800 - 2200K |
| Product Type | Downlight |
| IP Rating | IP66 Splashproof |
| CRI Rating (greater than) | CRI >80 |
| Colour | Warm White |
| Wattage | 3W |
| Connectivity | RF |
| Size | ø42 X 52mm Width X 36mm Height |
| Beam Angle | 36 degree |
| Rated Lifespan | 50,000 hours |
| Product Packed | Gift box |
| Dimmable | Yes (requires Trulux controller) |
| Guarantee Period | 5 Years |
| Wireless Range | Up to 30 metres |
| Luminous Flux | 154.7LM |
| Light Efficiency | 65.56LM/W |
| Operating Temp | -10~40°C |
| Operation Frequency | 2.4GHz |
| Smart Synchronisation | Version 2.0 |
**All specifications are subject to change without notice.
