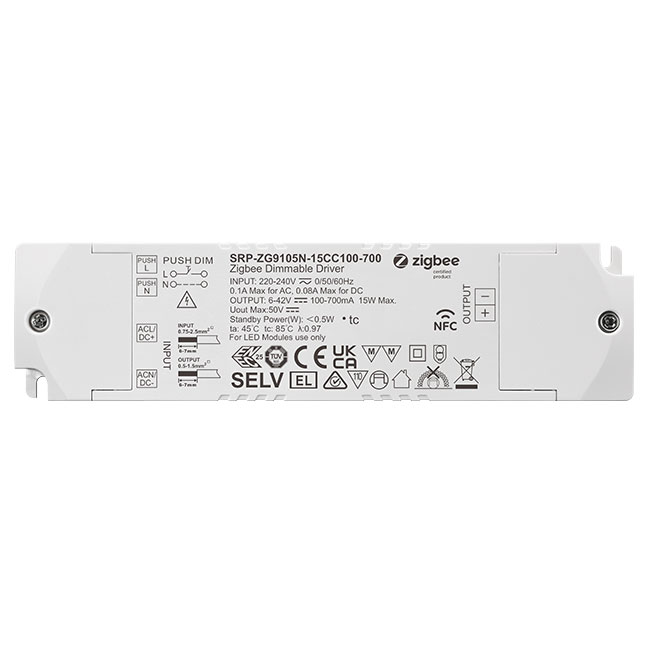

SRP-ZG9105N-15CC100-700 is a NFC Dimmable 15w LED Driver with 1 channel constant current output and adjustable current from 100ma to 700ma, which enables it to be suitable for constant current LED lights with different current. It is designed with 220-240VAC input. Power factor of the driver can be over 0.94 and efficiency is higher than 87%. It enables smooth and deep dimming to 0.1% without flickering and buzzing noise. The LED driver is designed with ZigBee control interface and can pair to ZigBee network and be controlled from your controller or hub interface. The driver can be compatible with universal ZigBee gateway or coordinator. In addition, the ZigBee device supports TouchLink commissioning to bind ZigBee remotes directly and controlled by the remotes.

The zigbee device is based on zigbee 3.0, it can be linked to and controlled by max. 30 zigbee remotes that support zigbee light link through touchlink. It also supports the new zigbee green power feature, and can bind to and be controlled by max. 20 zigbee green power remotes directly without zigbee hub or gateway.

Key Features
Dimmable LED driver, ZigBee device based on ZigBee 3.0 protocol
Dimmable LED driver. Max. output power 15W
100-700mA current selectable via NFC program tool. Min.current gear lower to 0.1mA
Dimming curve/Power on state/Soft start/Soft off via NFC program tool.
Class â…¡ power supply, full isolated plastic case
High power factor and efficiency
PUSH DIM function enabled
To switch and dim LED lighting luminaries
Amplitude/CCR dimming, smooth and deep dimming
ZigBee end device that supports Touchlink commissioning
Can directly pair to a compatible ZigBee remote via Touchlink
Supports find and bind mode to bind a ZigBee remote
Supports zigbee green power and can bind max. 20 zigbee green power switches
Compatible with universal ZigBee gateway products
Waterproof grade: IP20, suitable for indoor LED lighting applications
5 years warranty

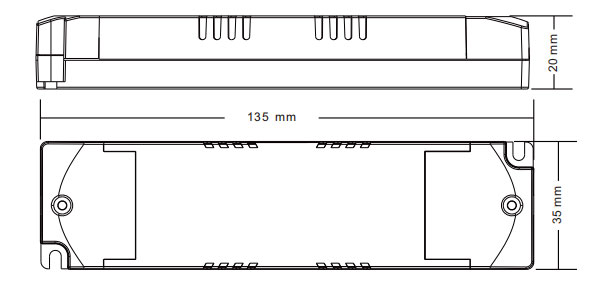

Product Dimension

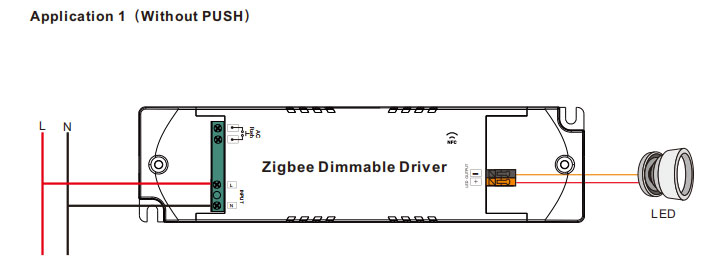

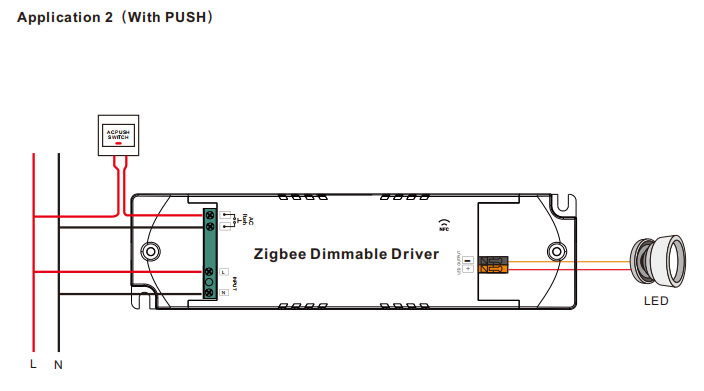

Wiring Diagram
