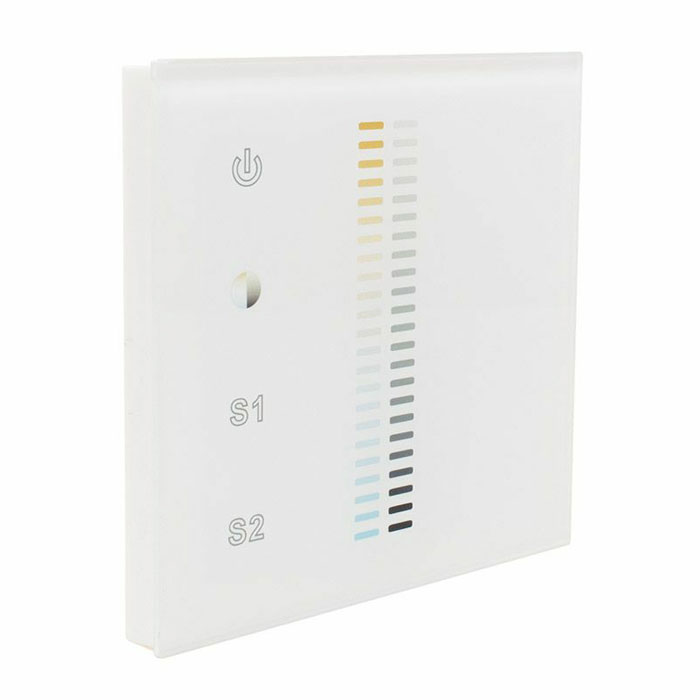

This touch sensitive 0-10V wall panel is from the Sunricher range. It is designed to work with any 0-10v dimmable driver.
This 0-10V LED controller is suitable for commercial and domestic use. It can be used in a variety of area such as living rooms, bedrooms or even offices. It is highly reliable and a high quality product perfect for 0-10V control over adjustable dual white and single colour LED lighting.
The wall mounted control panel allows effortless control over your LED lighting. It enables you to switch your lighting on or off using the ON/OFF switch. It also allows you to achieve 0-10V dimming using the touch sensitive slider. You can also adjust the colour temperature using the touch sensitive slider to adjust from Cool White to Warm White.
The touch panel has 4 0-10V outputs which enables you to control 4 dimmable LED drivers simultaneously.
It also features 2 programmable scenes. This enables you to save your unique light settings and recall them at the touch of a button.
The wall mounted dimming controller has be used with a range of LED products such as dual colour LED strip lights.
This wall panel enables quick and easy control over your lighting fixtures. It requires a 24C DC power supply to operate.
The 0-10V touch wall panel has an attractive white finished glass touch sensitive panel.

Technical Specification
Product Code:    SR2830BS110VWH
Product Packed:    Gift box
Product Type:    Controller
Colour:    White
IP Rating:    IP20 Non-Waterproof
Guarantee Period:    5 Years
Current:    20mA
Input Voltage:    24v DC
Connectivity:    0-10v protocols
PCB Weight:    Not Applicable
Size:    86 x 86 x 29.1mm
CRI Rating (greater than):    CRI >80
Dimmable:    Yes
LED Type:    Not Applicable
Average LED life Hrs:    30,000
Colour Temperature Variation:    IP20 No
Power Factor >:    Not Applicable
Continuous Operation:    Not suitable for 24/7 continuous use
Voltage Type:    Constant Voltage
Relative Humidity:    8% to 80%
Operating Temp:    0-40°C
