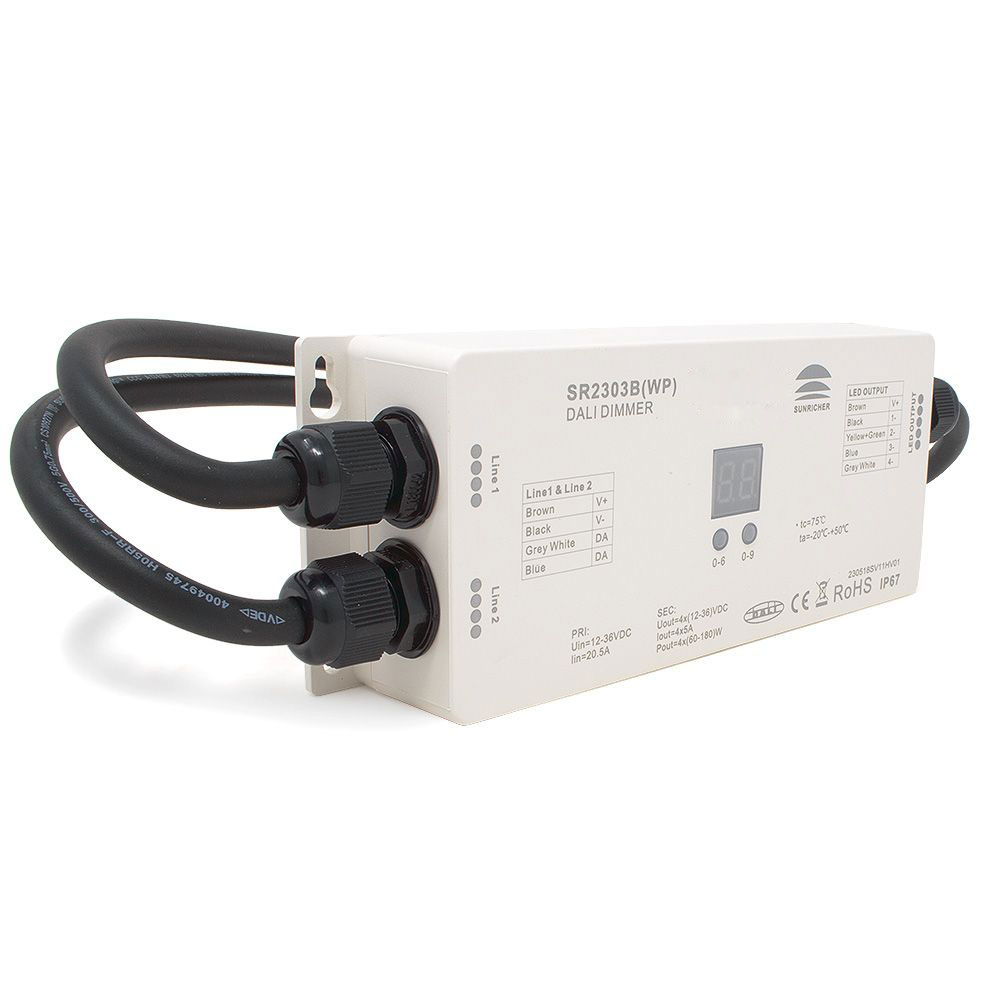

The SR2303BWP is an IP67-rated DALI-2 four-channel controller that is compatible with DALI DT6 protocols. With its weatherproof IP67 rating, it can be installed indoors or outdoors making this an ideal product for controlling your outdoor lighting using DALI protocols. Setting the DALI address is easy using the onboard digital display and menu buttons, or alternatively, the DALI address can be set automatically from the DALI Master.

Although the unit is four channels and can be used to control RGBW LED strip, it is possible to also set the unit to single channel mode where all the channels dim together using one DALI address or it can be used to control Colour Temperature adjustable LED strip (Duel channel mode) where channels 1&2 will work together as will channels 3&4. In three-channel mode, channels 1,2 & 3 are addressable and channel 4 is the same as channel 3.

Being DALI-2 compatible this unit will work with all DALI products on the market from different manufacturers.

For further information, please contact our technical sales team by phone, email or live chat on our website.

Technical Specification
Product Code:    SR2303BWP
Product Packed:    Gift box
Product Type:    Dimmer
Colour:    White
IP Rating:    IP67 Waterproof
PWM Frequency:    3.3KHz
Guarantee Period:    5 Years
Current:    4 x 5A
Input Voltage:    12V / 24V / 36V DC
Output Voltage:    12V / 24V / 36V DC
Connectivity:    DALI DT6 Protocols
Size:    170mm x 73.6mm x 38mm
Dimmable:    No
Voltage Type:    Constant Voltage
Max Bend:    Not Applicable
DALI Channels:    1, 2, 3 or 4 Channel Settable
Operating Temp:    -20 to +45
