Introducing the Zigbee 0-10V PWM controller

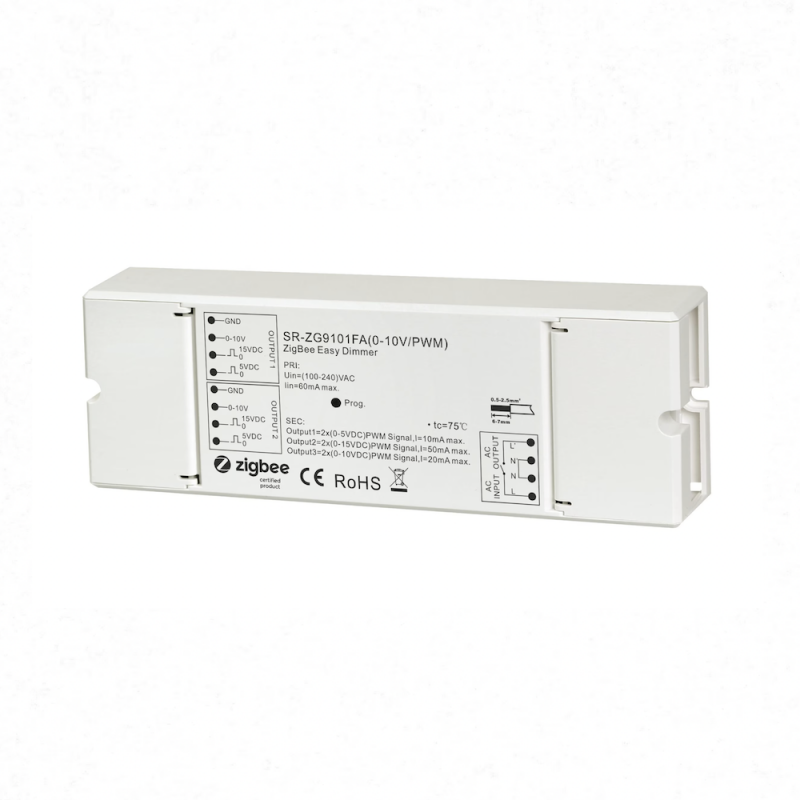

Sunricher SR-ZG9101FA-DIM (0-10V/PWM) is a ZigBee 3.0 controller designed to control 0-10 V or PWM compatible lighting fixtures and equipment. It allows for easy integration of professional lighting solutions into a ZigBee home automation system, while ensuring precise and reliable control of light intensity.

Operation
This module receives dimming commands via the ZigBee protocol and converts them into a 0-10 V or PWM signal to control LED drivers, electronic ballasts or other compatible control units. It provides an effective gateway between a ZigBee network and analogue dimming lighting installations.

Applications
The SR-ZG9101FA-DIM (0-10V/PWM) is suitable for both residential and commercial environments. It allows existing lighting systems to be modernised, making them compatible with intelligent, centralised and scalable management.

Advantages
With its extensive compatibility and professional design, this controller offers a flexible solution for connected lighting management. It facilitates the integration of 0-10 V or PWM equipment into a home automation ecosystem while ensuring stability, performance and ease of installation.

Key features of the 0-10V PWM Zigbee controller
Input voltage: 100-240 V AC
Input current: 60 mA
Outputs: 2x (0-5 V), 2x (0-10 V), 2x (0-15 V)
ZigBee 3.0 compatibility
0-10 V output for controlling drivers and ballasts
PWM output for LED applications
Smooth and precise dimming of light intensity
Integration with universal ZigBee gateways
Support for ZigBee commissioning and pairing functions
Over-the-air (OTA) firmware updates
