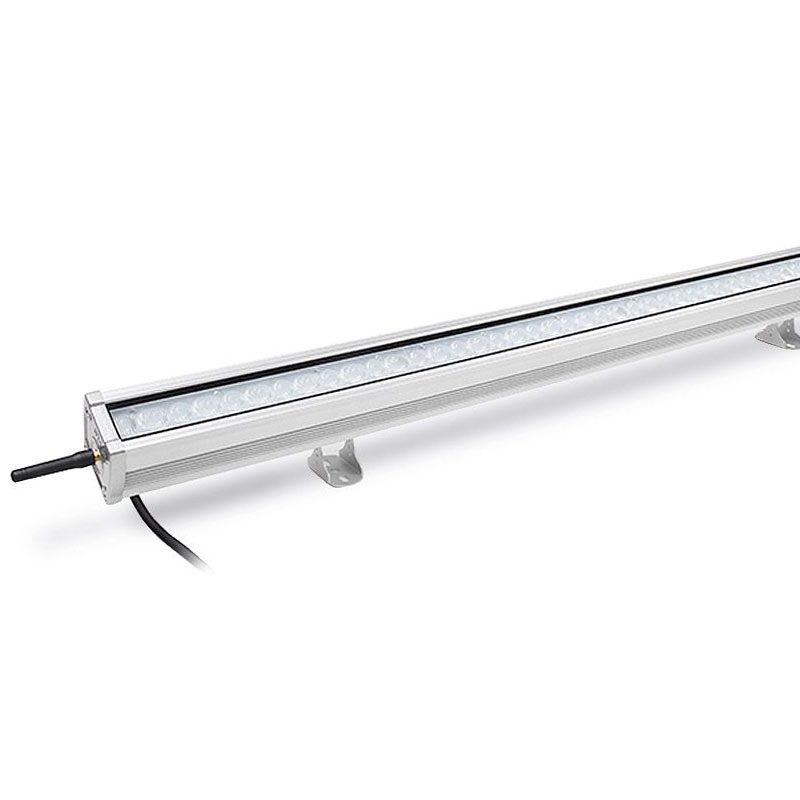

With numerous professional features this slim, compact 1m long LED batten incorporates RGB+CCT LED's giving a bright 24w colour wash of light with millions of colour combinations including colour temperature adjustment from warm white (2700K) to cool white (6500K).  The batten can be tilted on its mounting brackets to suit your requirements up to a maximum angle of 180deg and the beam angle of the LED's is 15 x 60deg with an illumination distance of up to 15m.
Note: This LED Batten must be controlled using either the FUT085 433MHz RF handset or the WL433 Gateway working on the 433MHz frequency.  The batten is not compatible with the 2.4GHz range of Mi-Light / Mi-Boxer control products.  For more information on this together with the various control options available please go to the FUT065 or WL433 product information on our website.
When paired to the FUT085 RF handset full control over the battens functions is possible including a range of dynamic programs can be selected and adjusted for run speed and brightness.  When paired to the WL433 Gateway, it is possible to control the batten from your smart phone using the free Mi-Boxer application or by voice control from your smart speaker.  Note: the WL433 Gateway also has a DMX port that can be connected directly to your DMX512 controller enabling you to control the batten by DMX protocols.
The batten should be connected to a suitable 100v-240v AC 50/60Hz mains power supply and then paired to a suitable 433MHz controller enabling wireless control up to 2000m.  This product is IP66 rated so if perfect for use outdoors but it cannot be submerged underwater.
These LED battens are supplied individually, additional products such as the FUT085 RF Handset and the WL433 Gateway are purchased separately.  Installation must be carried out by a qualified electrician.

Control equipment is sold separately, for product assistance please contact us by telephone, email or via the on-line chat.

Feature

1. RGB+CCT LED Wall Washer
2. 24W / AC 100-240V / LoRa 433MHz
3. Colour temperature 2700K~6500K
4. Dimmable
5. Auto synchronization
6. 5 Year Guarantee

Technical Specification
Product Type:    Wall Washer
Colour:    RGB / CW & WW
IP Rating:    IP66 Splashproof
Colour Temperature:    2700 - 6500K
Guarantee Period:    5 Years
Wattage:    24w
Input Voltage:    100v - 240v AC
Connectivity:    RF: 433MHz (LoRa Spread Spectrum)
Size:    L1017mm X W64mm X H62mm
Beam Angle:    15x60 degree
CRI Rating (greater than):    CRI >80
Dimmable:    Yes
Average LED life Hrs:    50,000
Power Factor >:    0.9
Wireless Range:    Up to 30 metres
Modulation Method:    LoRa Spread Spectrum
Operation Frequency:    RF: 433MHz
Operating Temp:    -20~60°C
Luminous Flux:    1800LM
Smart Synchronisation:    Version 2.0
