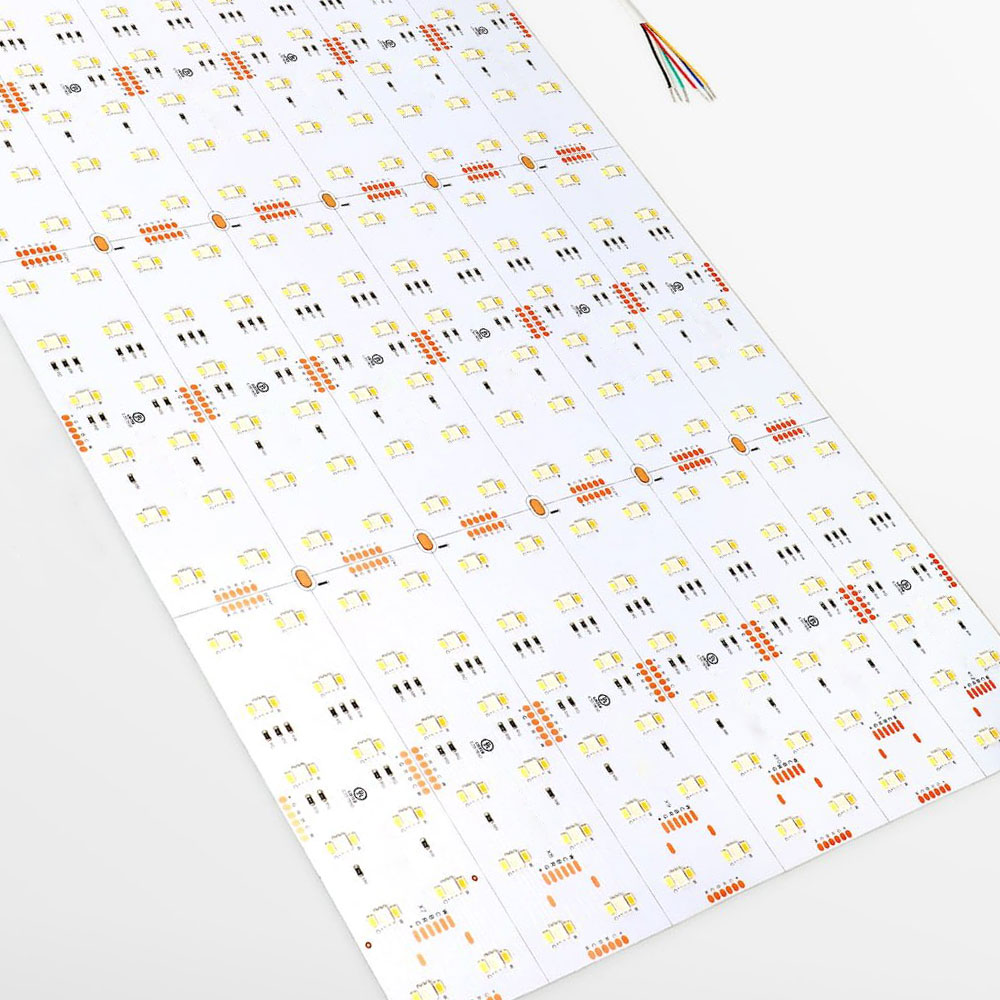

The LLS Series Flexible RGB+Tunable CCT LED Light Sheet is a versatile solution for creating unique lighting displays in channel letters, displays, and sign lighting. Each sheet features 864 high-density LEDs for bright, uniform illumination, offering dynamic RGB color-changing, tunable white (2700K–6500K), and dimming capabilities. Each 24” x 12” flexible sheet is divided into 24 segments, each measuring 6” x 2” and containing 36 LEDs providing a high 90+ CRI. The light sheet can be tailored to fit irregular shapes and wrap around corners for seamless integration. Installation is made easy with a 3M™ adhesive backing or screw mounting at designated points for secure placement.

Please refer to the specification sheet for cutting recommendations. Using only the pre-marked lines when cutting the sheet is essential to maintaining electrical contact.

Product Details:
PWM Dimmable
120° beam angle
Max run with Class 2 wiring: 2 Sheets
Enclosure rated: Min. 1.18" spacing from LEDs to Diffuser
19” pigtail connection
24 VDC

Specifications
Ambient Operating Temperature: -20 to 60 °C (-4 to 140 °F)
Certifications/Compliance: UL Listed
Color Temperature: Tunable CCT
CRI: 90+
Current Draw: 2.1 A
Dimensions: 24in x 12in
Dimmable: Yes
Dimmer Type: PWM
Efficacy: 65 lm/W
Enclosed Fixture Rated: Yes
Environmental Rating: Non-weatherproof, Suitable for Dry Locations
Finish: White
Input Connection Type: Pigtail
IP Rating: IP20
LED Beam Angle: 120°
LED Color: RGB+Tunable CCT
LED Chip Type: 2835 SMD, 5050 SMD
LEDs per Segment: 36
LED Lifetime: 50000 Hours
Max Run (Class 2): 2 Sheets
Operating Voltage: 24 VDC
Segment Size: 6 in. x 2 in. (152.4 mm x 50.8 mm)
Wattage: 50 Watts
