Features
● 4 channel 0/1-10V LED dimming driver with push-dim function.
● 4 channel 0/1-10V input, 4 channel PWM constant voltage output.
● 0~100% dimming range via logarithmic characteristic can be very comfortable for human eyes.
● Compatible with active or passive 0-10V, 1-10V dimmer, can solve the fluorescent lamp dimming system compatible with LED lighting.

Download SBL-L4-D Specification Sheet

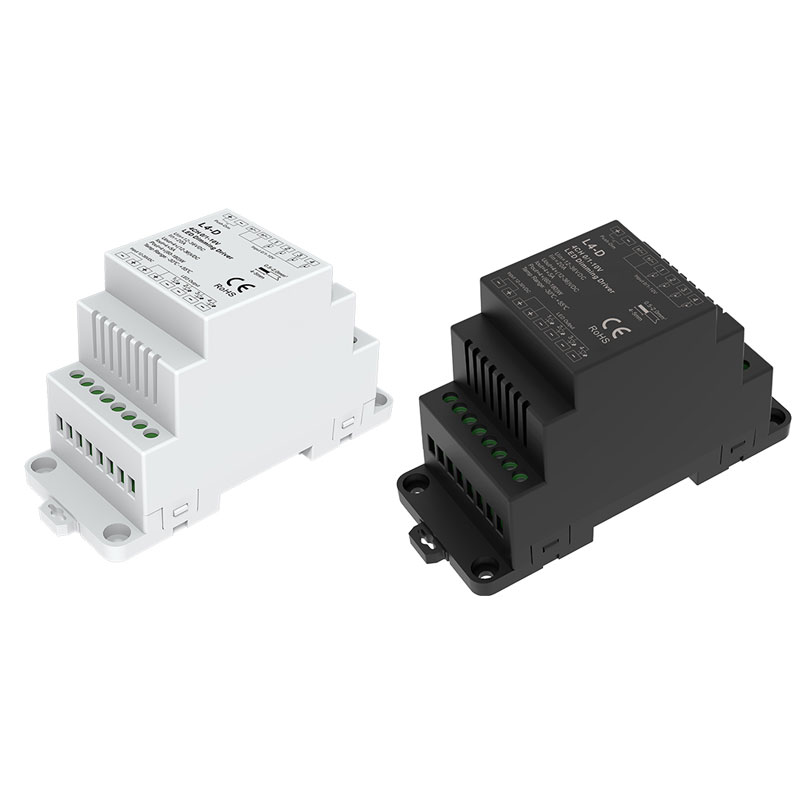

0/1-10V DC Dimming Driver
1. DC12/24/36V power input, 1/4 channels 0/1-10V signal input, 1/4 channels PWM constant voltage output.
2. 0~100% dimming range via logarithmic characteristic can be very comfortable for human eyes.
3. Compatible with active and passive 0/1-10V dimmer, can be connected to fluorescent dimming system.
4. Connect with external push switch to achieve on/off and 0-100% dimming function.
5. Work with power repeater to expand output unlimitedly.
