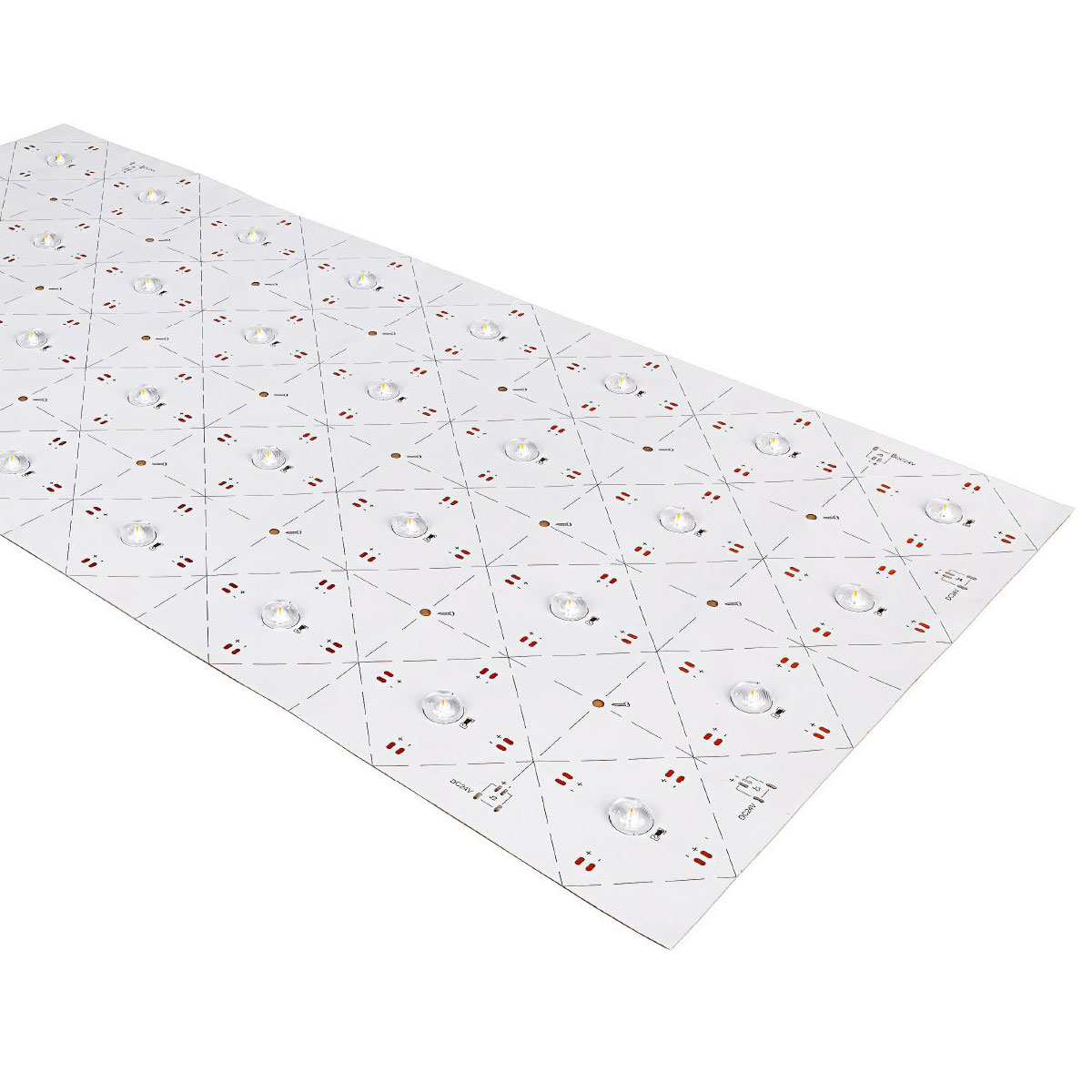

The LLS Series Flexible LED Light Sheet is designed for precision lighting applications. It offers versatility for channel letters, displays, and sign lighting. Its cuttable design adapts to unique shapes and wraps corners seamlessly, ensuring compatibility with various installations. Its 180° optic lenses provide uniform light distribution without hot spots, even when mounted as close as 1.18 inches from the diffuser. Each 24” x 12” sheet is divided into 32 segments, each measuring 3” x 3” and containing a single high-output LED. The sheet is available in warm (3000K), natural (4000K), or cool white (5000K) color temperatures. For secure installation, use the integrated 3M™ adhesive backing or screw mounting points indicated on the sheet.

Please refer to the specification sheet for cutting recommendations. Using only the pre-marked lines when cutting the sheet is essential to maintaining electrical contact.

Product Details:
PWM Dimmable
Max run with Class 2 wiring: 5 Sheets
Enclosure rated: Min. 1.18" spacing from LEDs to Diffuser
19” pigtail connection
24 VDC

Specifications
Ambient Operating Temperature: -20 to 45 °C (-4 to 113 °F)
Certifications/Compliance: UL Listed
CRI: 90+
Current Draw: 830 mA

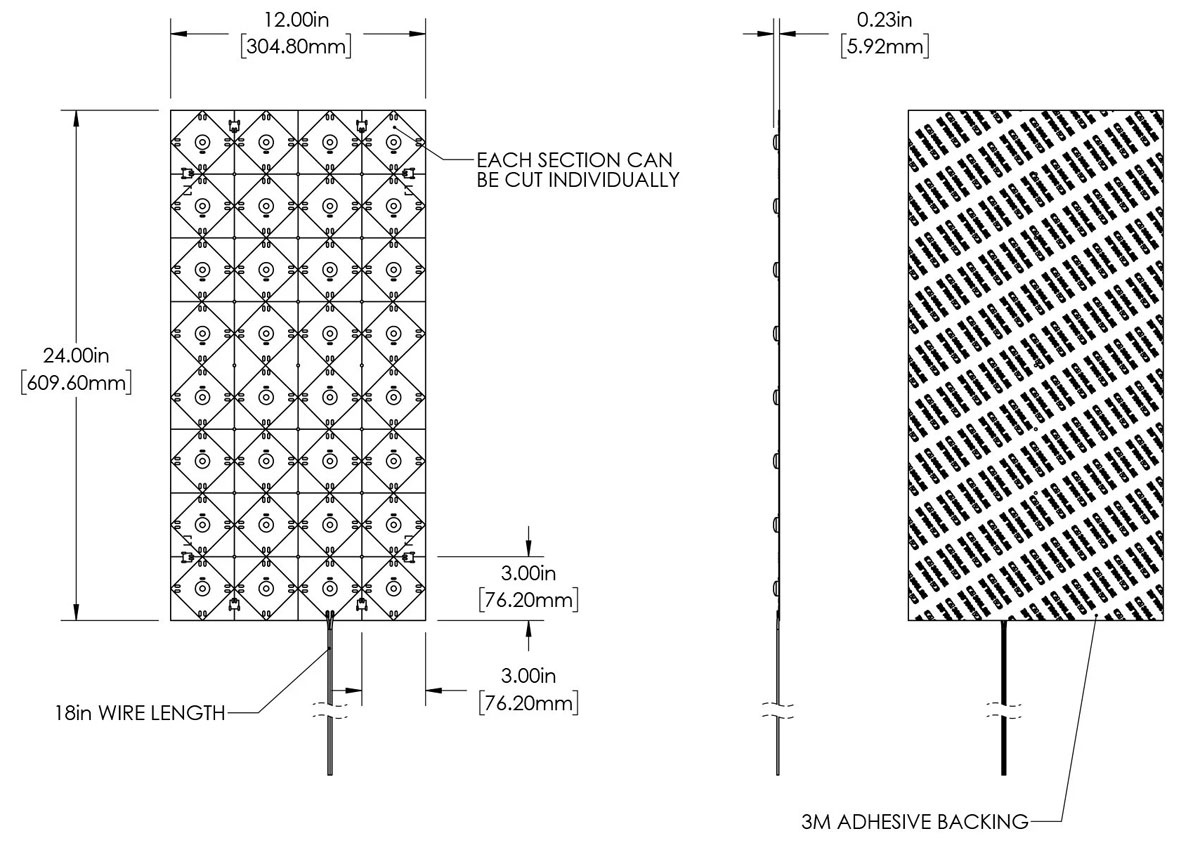

Dimensions: 24in x 12in
Dimmable: Yes
Dimmer Type: PWM
Enclosed Fixture Rated: Yes
Environmental Rating: Non-weatherproof, Suitable for Dry Locations
Finish: White
Input Connection Type: Pigtail
IP Rating: IP20
LED Beam Angle: 180°
LED Chip Type: 2835 SMD
LEDs per Segment: 1
LED Lifetime: 50000 Hours
Max Run (Class 2): 5 Sheets
Operating Voltage: 24 VDC
Segment Size: 3 in. x 3 in. (76.3 mm x 76.3 mm)
Wattage: 20 Watts
